Card Type	Modem(synchronous/asynchronous)
Chip Set	Unidentified
I/O Options	Voice
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	External
Fax Class	Class I & II
Data Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

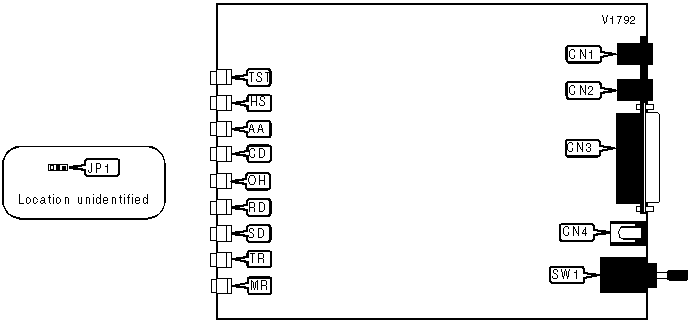

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		DC power		CN4
Line out		CN2		Power switch		SW1
RS-232/422		CN3

USER CONFIGURABLE SETTINGS
Setting	Label	Position
í AT commands enabled	JP1	Pins 2 & 3 closed
AT commands disabled	JP1	Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TST	Red	On	Normal operation
TST	Red	Blinking	Error detected and corrected
HS	Red	On	Modem is operating at 4800bps or faster
HS	Red	Off	Modem is operating at slower than 4800bps
AA	Red	On	Auto-answer enabled
AA	Red	Off	Auto-answer disabled
AA	Red	Blinking	Phone is ringing
CD	Red	On	Carrier signal detected
CD	Red	Off	Carrier signal not detected
OH	Red	On	Modem is off-hook
OH	Red	Off	Modem is on-hook
RD	Red	On	Modem is receiving data
RD	Red	Off	Modem is not receiving data
SD	Red	On	Modem is transmitting data
SD	Red	Off	Modem is not transmitting data
TR	Red	On	DTR signal is high
TR	Red	Off	DTR signal is low
MR	Red	On	Power is on
MR	Red	Off	Power is off
