Card Type	Wireless modem (synchronous/asynchronous)
Chip Set	Unidentified
Maximum Data Rate	9600bps
Data Bus	External
Data Modulation Protocol	Unidentified

CONNECTIONS
Function	Label		Function		Label
RS-232/422		CN1		DC power		CN3
450MHz antenna connector		CN2

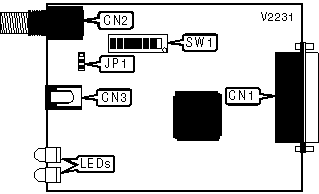

USER CONFIGURABLE SETTINGS
Setting	Label	Position
Transmitter can only be activated on low DCD	JP1	Pins 2 & 3 closed
Transmitter can be activated regardless of DCD	JP1	Pins 1 & 2 closed
Asynchronous mode	S1/1	Off
Synchronous mode	S1/1	On
Factory configured - do not alter	S1/2	On
Factory configured - do not alter	S1/3	On
10mS delay from RTS to CTS	S1/4	Off
25mS delay from RTS to CTS	S1/4	On
Carrier monitor disabled	S1/5	Off
Carrier monitor enabled	S1/5	On
Anti-streaming enabled	S1/6	Off
Anti-streaming disabled	S1/6	On
Factory configured - do not alter	S1/7	On
Use channel A	S1/8	Off
Use channel B	S1/8	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TD	Red	On	Modem is transmitting data
TD	Red	Off	Modem is not transmitting data
RD	Green	On	Modem is receiving data
RD	Green	Off	Modem is not receiving data
Note: The locations of individual LEDs are unidentified.
