Card Type	Modem (asynchronous)
Chip Set	Unidentified
I/O Options	Unidentified
Maximum Data Rate	2400bps
Data Bus	8-bit ISA
Data Modulation Protocol	V.22bis

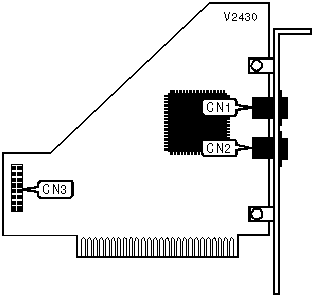

CONNECTIONS
Function	Label		Function		Label
Line out		CN1		Unidentified		CN3
Line in		CN2

MISCELLANEOUS TECHNICAL NOTE

This card is designed for use in Motorola’s 6520/6560 MPRouter system and will not function in another system. See documents M3596 and M3597 for more information.
