MOTOROLA, INC.
6520/6560 MPROUTER DSPM/HC CARD
|
Card Type |
Telephony |
|
Chip Set |
Unidentified |
|
I/O Options |
Telephone in/out (2) |
|
Data Bus |
16-bit ISA |
|
Line Type |
Foreign Exchange |
|

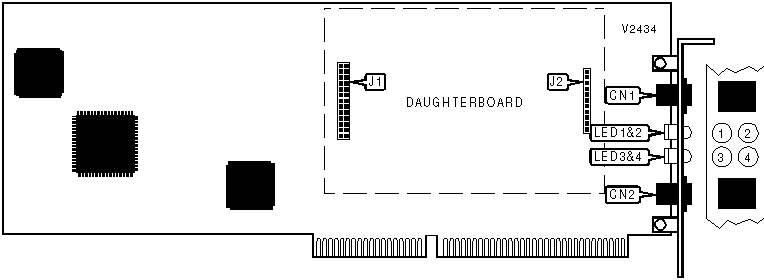

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line 1 |
CN1 |
FXO daughterboard header |
J1 |
|
Line 2 |
CN2 |
FXO daughterboard header |
J2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Line 1 local connection is off hook |
|
LED1 |
Green |
Off |
Line 1 local connection is on hook |
|
LED2 |
Green |
On |
Line 1 remote connection is off hook |
|
LED2 |
Green |
Off |
Line 1 remote connection is on hook |
|
LED3 |
Green |
On |
Line 2 local connection is off hook |
|
LED3 |
Green |
Off |
Line 2 local connection is on hook |
|
LED4 |
Green |
On |
Line 2 remote connection is off hook |
|
LED4 |
Green |
Off |
Line 2 remote connection is on hook |
|
MISCELLANEOUS TECHNICAL NOTE |
|
This card is designed for use in Motorola’s 6520/6560 MPRouter system and will not function in another system. See documents M3596 and M3597 for more information. |
