MOTOROLA, INC.
6520/6560 MPROUTER T1/E1 DUAL PORT CARD
|
Card Type |
T1 or E1 CSU/DSU |
|
Chip Set |
Unidentified |
|
I/O Options |
MVIP bus |
|
Transfer Rate |
1.544Mbps x 2 for T1, 2.048Mbps x 2 for E1 |
|
Data Bus |
16-bit ISA |
|

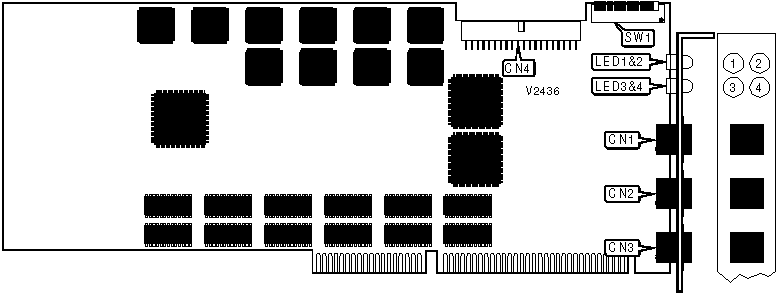

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line 1 |
CN1 |
Diagnostic port (not used) |
CN3 |
|
Line 2 |
CN2 |
MVIP bus |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
On |
| » |
Factory configured - do not alter |
SW1/2 |
On |
| » |
Factory configured - do not alter |
SW1/3 |
On |
| » |
Factory configured - do not alter |
SW1/4 |
On |
| » |
Factory configured - do not alter |
SW1/5 |
On |
| » |
Factory configured - do not alter |
SW1/6 |
Off |
| » |
Factory configured - do not alter |
SW1/7 |
Off |
| » |
Factory configured - do not alter |
SW1/8 |
Off |
| » |
Factory configured - do not alter |
SW1/9 |
Off |
| » |
Factory configured - do not alter |
SW1/10 |
On |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Carrier signal not detected on line 1 |
|
LED1 |
Yellow |
Off |
Carrier signal detected on line 1 |
|
LED2 |
Yellow |
On |
Carrier signal not detected on line 2 |
|
LED2 |
Yellow |
Off |
Carrier signal detected on line 2 |
|
LED3 |
Green |
On |
Card is operating normally |
|
LED3 |
Green |
Off |
Card has failed |
|
LED4 |
Yellow |
On |
Card has failed |
|
LED4 |
Yellow |
Off |
Card is operating normally |
|
MISCELLANEOUS TECHNICAL NOTE |
|
This card is designed for use in Motorola’s 6520/6560 MPRouter system and will not function in another system. See documents M3596 and M3597 for more information. |
