Card Type	Modem, Sound card
Chip Set	Unidentified
I/O Options	IDE interface, wavetable, audio in
Maximum Modem Rate	14.4Kbps
Data Modulation Protocol	Unidentified
Error Correction/Compression	Unidentified
Fax Class	Unidentified
Data Bus	16-bit ISA

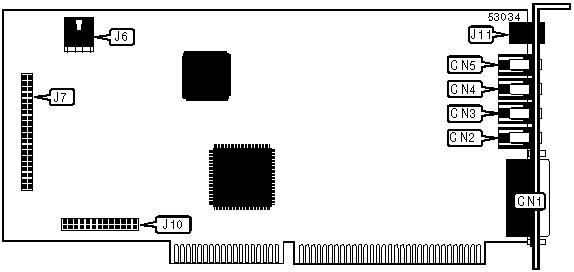

CONNECTIONS
Function	Label		Function		Label
Game/MIDI port		CN1		Audio in - CD-ROM		J6
Line out		CN2		IDE connector		J7
Speaker		CN3		Wavetable connector		J10
Microphone jack		CN4		RJ-11 telephone jack		J11
Line in		CN5

SUPPORTED COMMAND SET

Note: Supported command set is unidentified.
