Card Type	Modem (asynchronous)
Chipset	Unidentified
I/O Options	Voice (on 336ifxv(c) only)
Maximum Data Rate	33.6Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 103A, 212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34
Fax Modulation	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I
Data Bus	16-bit ISA
Card Size	Full height, half length

CONNECTIONS
Function	Label	Function	Label

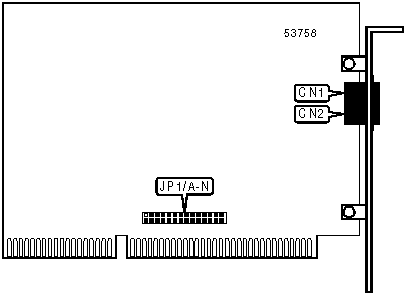

Telephone line out	CN1	Telephone line in	CN2

PLUG-N-PLAY
Setting	JP1/H	JP1/I	JP1/J
í Enabled	Closed	Closed	Closed
Disabled	Open	Open	Open
Note: If Plug-N-Play mode is enabled, all other jumper settings must also be set for Plug-N-Play.

INTERRUPT SELECTION
Setting	JP1/A	JP1/B	JP1/C	JP1/D	JP1/E	JP1/F	JP1/G
3	Open	Open	Open	Open	Open	Open	Closed
4	Open	Open	Open	Open	Open	Closed	Open
5	Open	Open	Open	Open	Closed	Open	Open
7	Open	Open	Open	Closed	Open	Open	Open
10	Open	Open	Closed	Open	Open	Open	Open
11	Open	Closed	Open	Open	Open	Open	Open
12	Closed	Open	Open	Open	Open	Open	Open
í Plug-N-Play	Closed	Closed	Closed	Closed	Closed	Closed	Closed

SERIAL PORT ADDRESS SELECTION
Setting	JP1/K	JP1/L	JP1/M	JP1/N
3F8h (COM1:)	Closed	Closed	Open	Open
2F8h (COM2:)	Closed	Open	Open	Closed
3E8h (COM3:)	Open	Closed	Closed	Open
2E8h (COM4:)	Open	Open	Closed	Closed
í Plug-N-Play	Open	Open	Open	Open

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, C, D, E, F, H, L, M, N, O, P, Q, T, V, X, Y, Z

&C, &D, &F, &G, &J, &K, &P, &S, &T, &W, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \N, \O, \Q, \T, \U, \X, \Y, \Z

%A, %C, %E, %G

Special AT Commands

-C, "H, -J, "O

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S25, S27

S30, S31, S33, S37

Note: See MHI help file for complete information.

IS-101 COMMANDS

+V Commands

+VCID, +VCSD, +VDR, +VEM, +VGM, +VGR, +VGS, +VGT, +VIP, +VIT, +VLS, +VNH, +VRA, +VRN, +VRX

+VSD, +VSM, +VSP, #VSPS, +VTD, +VTS, +VTX

-S Commands

-SAC, -SCD, -SDA, -SDS, -SER, -SFX, -SIC, -SIP, -SQR, -SSP, -SSQ, -SSR, -SSV

Note: The functions of the IS-101 commands are unidentified. These commands are supported on 336ifxv(c) only.
