NEWCOM, INC.
56KIFXSP (A)
|
Card Type |
Modem (asynchronous) |
|
Chip Set |
Unidentified |
|
I/O Options |
Microphone, speaker/line out |
|
Maximum Modem Rate |
56Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Modulation Protocol |
Bell 103A/212A V.34, V.32bis, V.32, V.23, V.22bis, V.22, V.21, K56flex, V.90 |
|
Fax Modulation Protocol |
V.17, V.29, V.27ter, V.21CH2 |
|
Error Correction/Compression |
V.42, MNP10, V.42bis, MNP5 |
|
Fax Class |
Class I & II |
|
Data Bus |
16-bit ISA |
|

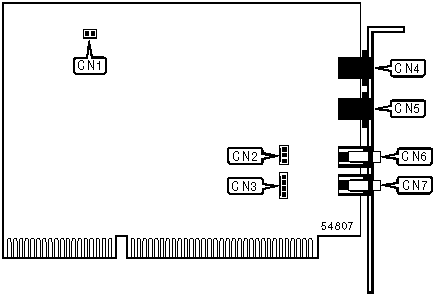

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Wake on ring |
CN1 |
Line out |
CN5 | |||
|
Microphone - internal |
CN2 |
Microphone - external |
CN6 | |||
|
TAD (sound card) connector |
CN3 |
Speaker/line out |
CN7 | |||
|
Line in |
CN4 | |||||
|
SUPPORTED COMMAND SET |
|
Basic AT Commands |
|
AT, A/ |
|
A, C, E, H, M, N, O, P, Q, T, V, W, X, Y, Z |
|
&C, &D, &J, &L, &M, &P, &Q, &R, &T, &V, &W, &X, &Y, &Z |
|
Extended AT Commands |
|
\A, \B, \G, \K, \L, \N |
|
%C, %Q |
|
S-Registers |
|
A list of S-registers was unavailable |
|
Note: See MHI Help File for full command documentation. |
Proprietary AT Command Set
|
COMMUNICATION PROTOCOLS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Bn [cmds] |
|
Description: |
Selects the communication protocol for data calls |
Note: The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols. | |
|
Command |
Protocol |
|
B0 |
ITU-T V.22 at 300 or 1200bps |
|
B1 |
Bell 212A at 300 or 1200bps |
|
B15 |
V.21 connection at 300bps |
|
B16 |
Bell 103 connection at 300bps |
|
DIAL | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] D<#> [cmds] |
|
Description: |
Dials telephone number according to any modifiers included in the string |
|
Note: |
Any combination of modifiers can be used to produce the desired dial functions in sequence. |
|
Command |
Function |
|
DL |
Re-dial last number |
|
DP |
Pulse dialing enabled |
|
DR |
Answer mode enabled; originate mode disabled following handshake initiation. |
|
DS=n |
Dial stored telephone number n |
|
DT |
Tone dialing enabled/Pulse dialing disabled |
|
DW |
Dialing resumed following dial tone detection |
|
D, |
Dialing paused for amount of time specified in S8 register |
|
D! |
Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook. |
|
D@ |
Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string. |
|
D^ |
Turns on the periodic 1300Hz calling tone. |
|
D; |
Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command. |
|
LINE MODULATION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Fn [cmds] |
|
Description: |
Selects line modulation |
Note: This command is only supported on older modems | |
|
Command |
Function |
|
F0 |
Auto-detect mode |
|
F1 |
V.21 or Bell 103 |
|
F3 |
V.23 |
|
F4 |
V.22 or Bell 212A @ 1200bps |
|
F5 |
V.22bis |
|
F6 |
V.32bis or V.32 @ 4800bps |
|
F7 |
V.32bis @ 7200bps |
|
F8 |
V.32bis for V.32 @ 9600bps |
|
F9 |
V.32bis @ 12000bps |
|
F10 |
V.32bis @ 14400bps |
|
REPORT INFORMATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] In [cmds] |
|
Description: |
Displays information requested |
|
Command |
Function |
|
I0 |
Reports product code |
|
I1 |
Reports ROM checksum |
|
I2 |
Tests and reports ROM checksum |
|
I3 |
Reports firmware revision level |
|
I4 |
Reports product capabilities |
|
I5 |
Reports country code |
|
I6 |
Reports modem data pump control |
|
SPEAKER VOLUME | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Ln [cmds] |
|
Description: |
Controls speaker volume |
|
Command |
Function |
|
L0 |
Low volume setting |
|
L1 |
Low volume setting |
|
í L2 |
Medium volume setting |
|
L3 |
Highest volume setting |
|
FACTORY DEFAULT PROFILE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &F [cmds] |
|
Description: |
Sets values in active profile to values found in the default profile |
|
Command |
Function |
|
&F0 |
Restore factory profile 0 |
|
&F1 |
Restore factory profile 1 |
|
GUARD TONE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Gn [cmds] |
|
Description: |
Commands the modem to transmit a guard tone in V.22/V.22bis |
Note: Used primarily for international data transmission | |
|
Command |
Function |
|
í &G0 |
Guard tone disabled |
|
&G1 |
Guard tone disabled |
|
&G2 |
1800Hz guard tone enabled |
|
FLOW CONTROL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Kn [cmds] |
|
Description: |
Enables flow control options |
|
Command |
Function |
|
&K0 |
Flow control disabled |
|
í &K3 |
RTS/CTS flow control enabled |
|
&K4 |
XON/XOFF flow control enabled |
|
&K5 |
Transparent XON/XOFF flow control enabled |
|
&K6 |
RTS/CTS, XON/XOFF, and DTE/DCE flow control enabled |
|
DATA SET READY (DSR) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Sn [cmds] |
|
Description: |
Selects DSR options |
|
Command |
Function |
|
&S0 |
DSR forced high |
|
í &S1 |
DSR high only while modem is handshaking or connected |
Extended AT Commands
|
AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] %En [cmds] |
|
Description: |
Controls auto-retrain mode and fallback/fall-forward |
|
Command |
Function |
|
%E0 |
Auto-retrain disabled |
|
%E1 |
Auto-retrain enabled |
