NATURAL MICROSYSTEMS CORPORATION
AG-CONNECT BOARD
|
Card Type |
MVIP Interface Board |
|
NIC Type |
T1 |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
Unidentified |
|
Topology |
Star |
|
Wiring Type |
Unidentified |
|
Data Bus |
8-bit ISA |
|

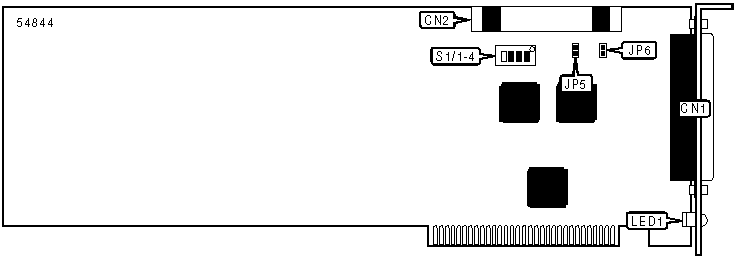

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
62-pin connector |
CN1 |
MVIP connector |
CN2 |
|
MVIP TERMINATION | |||
|
Function |
JP5 |
JP6 | |
| » |
MVIP termination disabled |
Open |
Open |
|
MVIP termination enabled |
Closed |
Closed | |
|
BASE I/O ADDRESS SELECTION | |||||
|
Setting |
S1/1 |
S1/2 |
S1/3 |
S1/4 | |
|
140h |
On |
Off |
Off |
Off | |
|
160h |
On |
Off |
Off |
On | |
|
220h |
On |
Off |
On |
Off | |
|
240h |
On |
Off |
On |
On | |
|
540h |
On |
On |
Off |
Off | |
|
560h |
On |
On |
Off |
On | |
|
620h |
On |
On |
On |
Off | |
| » |
640h |
On |
On |
On |
On |
|
2140h |
Off |
Off |
Off |
Off | |
|
2160h |
Off |
Off |
Off |
On | |
|
2220h |
Off |
Off |
On |
Off | |
|
2240h |
Off |
Off |
On |
On | |
|
2540h |
Off |
On |
Off |
Off | |
|
2560h |
Off |
On |
Off |
On | |
|
2620h |
Off |
On |
On |
Off | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
DC power is properly connected |
|
LED1 |
Unidentified |
Off |
DC power is not connected |
