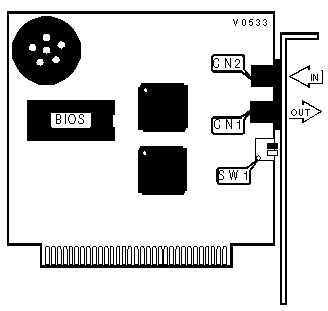

PRACTICAL PERIPHERALS, INC.
PM2400FX96
|
Modem Type |
Data (Asynchronous/Synchronous)/Fax |
|
Maximum Data Rate |
2400 bps |
|
Maximum Fax Rate |
9600 bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class II |
|
Data Modulation Protocol |
Bell 103A & 212A ITU-T V.22 & V.22 bis & V.21 |
|
Fax Modulation Protocol |
GRP III |
|
Error Correction/Compression |
Unidentified |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
COM PORT & IRQ SETTINGS | ||
|
COM/Address/IRQ |
SW1/1 |
SW1/2 |
|
í COM1 / 3F8 - 3FFh / IRQ4 |
On |
On |
|
COM2 / 2F8 - 2FFh / IRQ3 |
Off |
On |
|
COM3 / 3E8 - 3FFh / IRQ4 |
On |
Off |
|
COM4 / 2E8 - 2FFh / IRQ3 |
Off |
Off |
