PHILIPS
FAX MODEM PCA33IM
|
Card Type |
Fax, Modem (asynchronous) |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
33.6Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34, V.34+ Rockwell V.FC |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

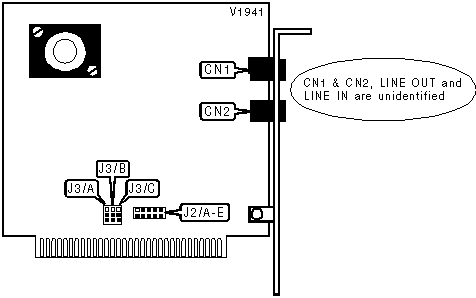

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out/in - unidentified |
CN1 |
Line in/out - unidentified |
CN2 | |||
|
SERIAL PORT ADDRESS | |||
|
Setting |
J3/A |
J3/B |
J3/C |
|
COM1 (3F8h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
COM2 (2F8h) |
Pins 2 & 3 open |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
COM3 (3E8h) |
Pins 2 & 3 closed |
Pins 2 & 3 open |
Pins 2 & 3 closed |
|
COM4 (2E8h) |
Pins 2 & 3 open |
Pins 2 & 3 open |
Pins 2 & 3 closed |
|
INTERRUPT | |||||
|
Setting |
J2/A |
J2/B |
J2/C |
J2/D |
J2/E |
|
2 |
Closed |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Open |
Closed |
Proprietary AT Command Set
|
AMPERSAND (&) COMMANDS | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] &$ [cmds] |
|
Description: |
Displays all ampersand (&) commands |
|
ANSWER MODE | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] Bn [cmds] | |
|
Description: |
Sets the protocol for answer mode | |
|
Command |
Function | |
|
í B0 |
ITU-T V.25 answer mode enabled | |
|
B1 |
U.S. answer mode enabled | |
|
ARQ - BREAK LENGTH | |
|
Type: |
Register |
|
Format: |
AT [cmds] S21=n [cmds] |
|
Default: |
10 |
|
Range: |
0-255 |
|
Unit: |
.01 second |
|
Description: |
Sets the length of break |
|
ARQ MODES | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &Mn [cmds] | |
|
Description: |
Select the ARQ mode | |
|
Command |
Function | |
|
&M0 |
Normal mode only enabled, ARQ error correction disabled | |
|
í &M4 |
Normal mode with ARQ error correction enabled | |
|
&M5 |
ARQ error correction only enabled | |
|
ARQ RESPONSE CODES | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &An [cmds] | |
|
Description: |
Select which type of response code are displayed after connection | |
|
Command |
Function | |
|
&A0 |
ARQ response disabled | |
|
&A1 |
ARQ response enabled | |
|
&A2 |
ARQ response with V.32 protocol enabled | |
|
í &A3 |
ARQ response with V.32, error correction, and data compression protocols enabled | |
|
BASIC COMMAND SET | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] $ [cmds] |
|
Description: |
Displays basic command set |
|
BIT MAPPED REGISTERS | |
|
Register |
Default |
|
S13 |
0 |
|
S14 |
0 |
|
S15 |
0 |
|
S16 |
0 |
|
S27 |
0 |
|
S34 |
6 |
|
S51 |
0 |
|
S54 |
0 |
|
S55 |
0 |
|
S56 |
0 |
|
BREAK TYPE | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &Yn [cmds] | |
|
Description: |
Configures action of break signal | |
|
Command |
Function | |
|
&Y0 |
Buffers cleared, no break sent | |
|
í &Y1 |
Buffers cleared, break sent | |
|
&Y2 |
Send break immediately | |
|
COMPRESSION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Kn [cmds] |
|
Description: |
Selects data compression |
|
Command |
Function |
|
&K0 |
MNP5 and V.42bis data compression disabled |
|
í &K1 |
Auto data compression enabled |
|
&K2 |
MNP5 and V.42bis enabled |
|
&K3 |
MNP5 data compression disabled |
|
CONNECTION SPEED LOWER LIMIT | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Un [cmds] |
|
Description: |
Sets slowest allowed connection speed |
|
Command |
Function |
|
í &U0 |
No minimum speed enabled |
|
&U1 |
Select 300bps minimum speed |
|
&U2 |
Select 1200bps minimum speed |
|
&U3 |
Select 2400bps minimum speed |
|
&U4 |
Select 4800bps minimum speed |
|
&U5 |
Select 7200bps minimum speed |
|
&U6 |
Select 9600bps minimum speed |
|
&U7 |
Select 12Kbps minimum speed |
|
&U8 |
Select 14.4Kbps minimum speed |
|
&U9 |
Select 16.8Kbps minimum speed |
|
&U10 |
Select 19.2Kbps minimum speed |
|
&U11 |
Select 21.6Kbps minimum speed |
|
&U12 |
Select 24Kbps minimum speed |
|
&U13 |
Select 26.4Kbps minimum speed |
|
&U14 |
Select 28.8Kbps minimum speed |
|
&U15 |
Select 31.2Kbps minimum speed |
|
&U16 |
Select 33.6Kbps minimum speed |
|
CONNECTION SPEED UPPER LIMIT | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Nn [cmds] |
|
Description: |
Sets fastest allowed connection speed |
|
Command |
Function |
|
í &N0 |
Automode enabled |
|
&N1 |
Select 300bps maximum speed |
|
&N2 |
Select 1200bps maximum speed |
|
&N3 |
Select 2400bps maximum speed |
|
&N4 |
Select 4800bps maximum speed |
|
&N5 |
Select 7200bps minimum speed |
|
&N6 |
Select 9600bps minimum speed |
|
&N7 |
Select 12Kbps minimum speed |
|
&N8 |
Select 14.4Kbps minimum speed |
|
&N9 |
Select 16.8Kbps minimum speed |
|
&N10 |
Select 19.2Kbps minimum speed |
|
&N11 |
Select 21.6Kbps minimum speed |
|
&N12 |
Select 24Kbps minimum speed |
|
&N13 |
Select 26.4Kbps minimum speed |
|
&N14 |
Select 28.8Kbps minimum speed |
|
&N15 |
Select 31.2Kbps minimum speed |
|
&N16 |
Select 33.6Kbps minimum speed |
|
CONFIGURATION PROFILE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Yn [cmds] |
|
Description: |
Selects which profile the modem will use on power up or reset |
|
Command |
Function |
|
í Y0 |
Profile 0 enabled |
|
Y1 |
Profile 1 enabled |
|
DATA SET READY (DSR) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Sn [cmds] |
|
Description: |
Selects DSR options |
|
Command |
Function |
|
í &S0 |
DSR forced high |
|
&S1 |
DSR high while modem is on-line and off in command mode |
|
DIALING COMMANDS | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] D$ [cmds] |
|
Description: |
Displays dialing commands |
|
DTE RATE | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &Bn [cmds] | |
|
Description: |
Controls the action the DTE speed will take | |
|
Command |
Function | |
|
&B0 |
After on-line, DTE speed follows DCE speed | |
|
í &B1 |
DTE speed constant | |
|
&B2 |
DTE speed constant in ARQ mode, DTE speed variable in non-ARQ mode | |
|
FACTORY DEFAULT PROFILE | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &Fn [cmds] | |
|
Description: |
Sets values in active profile to values found in the default profile | |
|
Command |
Function | |
|
&F0 |
Factory default profile 0 | |
|
í &F1 |
Factory default profile 1, hardware flow control enabled | |
|
&F2 |
Factory default profile 2, software flow control enabled | |
|
FLOW CONTROL - TRANSMIT | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &Hn [cmds] | |
|
Description: |
Selects the type of flow control used by the modem when transmitting | |
|
Command |
Function | |
|
&H0 |
Transmit flow control disabled | |
|
í &H1 |
CTS flow control enabled | |
|
&H2 |
XON/XOFF flow control enabled | |
|
&H3 |
Both CTS and XON/XOFF flow control enabled | |
|
FLOW CONTROL - RECEIVE | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &In [cmds] | |
|
Description: |
Selects the type of flow control used by the modem when receiving | |
|
Command |
Function | |
|
í &I0 |
Receive flow control disabled | |
|
&I1 |
XON/XOFF flow control enabled | |
|
&I2 |
XON/XOFF flow control enabled, XON/XOFF signals trapped by local modem | |
|
&I3 |
HP ENQ/AQK software flow control enabled in host mode | |
|
&I4 |
HP ENQ/AQK software flow control enabled in terminal mode | |
|
&I5 |
Software flow control enabled for non-AQR mode | |
|
FLOW CONTROL CHARACTER - XOFF | |
|
Type: |
Register |
|
Format: |
AT [cmds] S23=n [cmds] |
|
Default: |
19 |
|
Range: |
0-127 |
|
Unit: |
ASCII |
|
Description: |
Sets the character used to represent XOFF |
|
FLOW CONTROL CHARACTER - XON | |
|
Type: |
Register |
|
Format: |
AT [cmds] S22=n [cmds] |
|
Default: |
17 |
|
Range: |
0-127 |
|
Unit: |
ASCII |
|
Description: |
Sets the character used to represent XON |
|
INACTIVITY TIMER | |
|
Type: |
Register |
|
Format: |
AT [cmds] S19=n [cmds] |
|
Default: |
0 |
|
Range: |
0-255 |
|
Unit: |
1 second |
|
Description: |
Sets the length of time that the modem does not receive information before it disconnects. |
|
REPORT INFORMATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] In [cmds] |
|
Description: |
Displays information requested |
|
Command |
Function |
|
I0 |
Reports product identification code |
|
I1 |
Reports ROM checksum |
|
I2 |
Tests internal memory |
|
I3 |
Reports product ID |
|
I4 |
Reports current command settings |
|
I5 |
Reports stored and active profiles |
|
I6 |
Reports link diagnostics |
|
I7 |
Reports product configuration |
|
RESULT CODES | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] Qn [cmds] |
|
Description: |
Enables modem to send result codes to the DTE |
|
Command |
Function |
|
í Q0 |
Result code sending enabled |
|
Q1 |
Result code sending disabled |
|
Q2 |
Result code sending enabled on originate mode |
|
RTS/CTS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Rn [cmds] |
|
Description: |
Selects RTS/CTS options |
|
Command |
Function |
|
&R0 |
Not used |
|
&R1 |
CTS forced high, RTS is ignored. |
|
í &R2 |
RTS flow control enabled |
|
SOFT RESET | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] Zn [cmds] |
|
Description: |
Restores modem profiles |
|
Command |
Function |
|
Z0 |
Restore profile from ATY command |
|
Z1 |
Restore profile 0 |
|
Z2 |
Restore profile 1 |
|
Z3 |
Restore factory default profile 0 |
|
Z4 |
Restore factory default profile 1 |
|
Z5 |
Restore factory default profile 2 |
|
STATUS REGISTERS | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] S$ [cmds] |
|
Description: |
Displays all S-registers |
|
STORE TELEPHONE NUMBER | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] &Zn=(phone # & modifiers) | |
|
Description: |
Writes selected telephone numbers into the non-volatile memory at location n | |
|
Command |
Function | |
|
&Zn=L |
Last dialed number stored at memory location n | |
|
&Zn? |
Display stored number at memory location n | |
|
&ZL |
Display last dialed number | |
|
V.32 - HANDSHAKE LENGTH | |
|
Type: |
Register |
|
Format: |
AT [cmds] S28=n [cmds] |
|
Default: |
8 |
|
Range: |
0-255 |
|
Unit: |
.1 second |
|
Description: |
Sets the length of time the modem handshakes in V.32 mode |
