PRACTICAL PERIPHERALS, INC.
PM14400FX II
|
Card Type |
Modem (asynchronous) |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
14.4Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

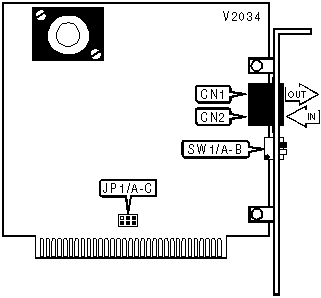

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
Line in |
CN2 | |||
|
SERIAL PORT ADDRESS | ||
|
Setting |
SW1/A |
SW1/B |
|
COM1 (3F8h) |
On |
On |
|
í COM2 (2F8h) |
On |
Off |
|
COM3 (3E8h) |
Off |
On |
|
COM4 (2E8h) |
Off |
Off |
|
INTERRUPT | |||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
|
2 |
Open |
Closed |
Open |
|
í 3 |
Closed |
Open |
Open |
|
4 |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Closed |
Proprietary AT Command Set
See document V2033 for a full command summary.
