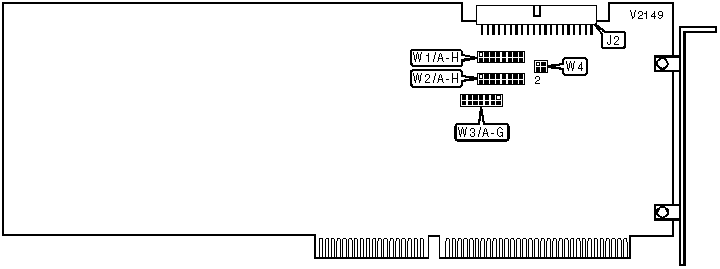

RHETOREX, INC.
RDSP/4000, RDSP/8000, RDSP/12000, RDSP/16000, RDSP/24000
|
Card Type |
Telephony |
|
I/O Options |
MVIP bus |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS | |
|
Function |
Label |
|
MVIP bus |
J2 |
|
BASE I/O ADDRESS | ||||||||
|
Setting |
W3/A |
W3/B |
W3/C |
W3/D |
W3/E |
W3/F |
W3/G | |
|
000h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed | |
|
008h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Open | |
|
020h |
Closed |
Closed |
Closed |
Closed |
Closed |
Open |
Closed | |
|
028h |
Closed |
Closed |
Closed |
Closed |
Closed |
Open |
Open | |
|
030h |
Closed |
Closed |
Closed |
Closed |
Open |
Closed |
Closed | |
| » |
300h |
Open |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
|
3D8h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
3E0h |
Open |
Open |
Open |
Open |
Open |
Closed |
Closed | |
|
3E8h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
3F0h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
3F8h |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
Note: A total of 127 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. W5/A is the Most Significant Bit and jumper W5/G is the Least Significant Bit. The jumpers have the following decimal values: W5/A=512, W5/B=256, W5/C=128, W5/D=64, W5/E=32, W5/F=16, W5/G=8. Open the jumpers and add the values of the open jumpers to obtain the correct memory address. (Open=1, Closed=0) | ||||||||
|
MVIP RECEIVE STREAM | ||||||||
|
Setting |
W1/A |
W1/B |
W1/C |
W1/D |
W1/E |
W1/F |
W1/G |
W1/H |
|
0 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
1 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
2 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
6 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
MVIP TRANSMIT STREAM | ||||||||
|
Setting |
W2/A |
W2/B |
W2/C |
W2/D |
W2/E |
W2/F |
W2/G |
W2/H |
|
0 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
1 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
2 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
6 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
MVIP BUS TERMINATION | |
|
Setting |
W4 |
|
Terminated |
Pins 1 & 2, 3 & 4 closed |
|
Not terminated |
Open |
