PHILIPS CONSUMER ELECTRONICS, CO.
PCA22IV (VER.2)
|
Card Type |
Fax, Modem (synchronous/asynchronous), Voice |
|
Chip Set |
Speakerphone, Voice-mail |
|
Maximum Data Rate |
33.6Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34 Rockwell V.FC |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

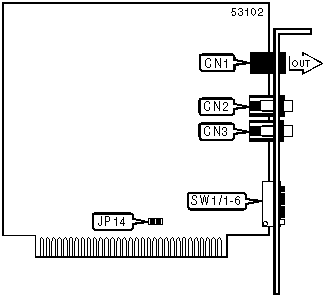

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line in |
CN1 |
Microphone connector |
CN3 | |||
|
Speaker connector |
CN2 | |||||
|
SERIAL PORT ADDRESS | |||
|
Setting |
SW1/1 |
SW1/2 |
JP14 |
|
COM1 (3F8h) |
On |
On |
Open |
|
COM2 (2F8h) |
Off |
On |
Open |
|
COM3 (3E8h) |
On |
Off |
Open |
|
COM4 (2E8h) |
Off |
Off |
Open |
|
í PnP |
Off |
Off |
Closed |
|
INTERRUPT | ||||
|
Setting |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
2/9 |
On |
Off |
Off |
Off |
|
3 |
Off |
On |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
|
5 |
Off |
Off |
Off |
On |
|
í PnP |
Off |
On |
Off |
Off |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Supported command set is unidentified. |
