Card Type	Fax, Modem (asynchronous)
Chip Set	Unidentified
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	8-bit ISA
Fax Class	Class I & II
Data Modulation Protocol	Bell 103/212 ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.32terbo, V.34
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

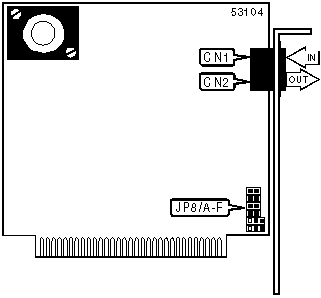

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		Line out		CN2

INTERRUPT
Setting	JP8/A	JP8/B	JP8/C	JP8/D
2/9	Open	Open	Open	Closed
í 3	Open	Open	Closed	Open
4	Open	Closed	Open	Open
5	Closed	Open	Open	Open
Note: The functions of JP8/E & JP8/F are unidentified

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, ‘Comma’, A/

A, E, M, O, P, S, T, V, X, Y, Z

&C, &D, &F, &G, &K, &P, &S, &T, &V, &W, &X, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \N, \Q, \V, \X, %A, %C, %E

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S16, S18, S25, S26, S27, S91

Note: See MHI Help file for full command documentation.
