QUADRANT COMPONENTS, INC.

CHOICE 33.6

Card Type

Modem (asynchronous)

Chipset

U.S. Robotics

Maximum Data Rate

33.6Kbps

Maximum Fax Rate

14.4Kbps

Data Modulation

Bell 103A, 212A

ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34

Fax Modulation

Unidentified

Error Correction/Compression

MNP5, V.42, V.42bis

Fax Class

Class I & II

Data Bus

8-bit ISA

Card Size

Full height, half length

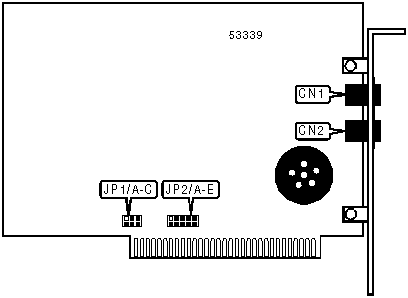

CONNECTIONS

Function

Label

Function

Label

Telephone line

CN1

Telephone line

CN2

SERIAL PORT ADDRESS SELECTION

Setting

JP1/A

JP1/B

JP1/C

3F8h (COM1:)

Closed

Closed

Closed

2F8h (COM2:)

Open

Closed

Closed

3E8h (COM3:)

Closed

Open

Closed

2E8h (COM4:)

Open

Open

Closed

í Plug-N-Play

Open

Open

Open

INTERRUPT SELECTION

Setting

JP2/A

JP2/B

JP2/C

JP2/D

JP2/E

2

Closed

Open

Open

Open

Open

3

Open

Closed

Open

Open

Open

4

Open

Open

Closed

Open

Open

5

Open

Open

Open

Closed

Open

7

Open

Open

Open

Open

Closed

í Plug-N-Play

Open

Open

Open

Open

Open

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, B, C, D, E, F, H, L, M, O, P, T, V, X

&C, &D, &G, &P, &R, &S, &T, &W, &Z

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S18, S25, S38

Note: See MHI help file for complete information.

Proprietary AT Command Set

BIT-MAPPED REGISTER S13

Format

AT [cmds] S13=n [cmds]

Default:

0

Range:

0 - 159

Description:

Controls DTR reset, non-error-correcting mode buffer, BS/DEL switch, DTR dialing, reset dialing, and escape sequence reaction.

Bit

Value

Function

0

í 0

1

DTR normal.

Reset on low DTR.

1

í 0

1

Non-error-correcting mode transmit buffer set to 1.5KB.

Non-error-correcting mode transmit buffer set to 128 bytes.

2

í 0

1

Backspace and delete keys normal.

Backspace and delete keys reversed.

3

í 0

1

DTR dialing disabled.

DTR dialing enabled.

4

í 0

1

Reset dialing disabled.

Reset dialing enabled.

6, 5

00

Not used.

7

í 0

1

Modem reacts normally to escape sequence.

Modem disconnects and returns to command state upon receiving an escape sequence.

BIT-MAPPED REGISTER S27

Format:

AT [cmds] S27=n [cmds]

Default:

0

Range:

0 - 191

Description:

Controls V.21, V.32 encoding and modulation, V.42 answer tone, V.32 fallback, V.32bis mode, and 9600 result codes.

Bit

Value

Function

0

í 0

1

V.21 disabled.

V.21 enabled.

1

í 0

1

V.32 trellis coding disabled.

V.32 trellis coding enabled.

2

í 0

1

V.32 modulation enabled.

V.32 modulation disabled.

3

í 0

1

2100Hz answer tone enabled.

2100Hz answer tone disabled.

4

í 0

1

V.32 fallback disabled.

V.32 fallback enabled.

5

í 0

1

V.32bis enabled.

V.32bis disabled.

6

0

Not used.

7

í 0

1

Actual result codes displayed.

Force 9600 result codes.

BREAK LENGTH

Type:

Register

Format:

AT [cmds] S21=n [cmds]

Default:

10

Range:

Unidentified

Unit:

10 ms

Description:

Sets the length of error control mode breaks sent from DCE to DTE.

BREAK TYPE

Type:

Configuration

Format:

AT [cmds] &Yn [cmds]

Description:

Configures action of break signal.

Command

Function

&Y0

Break empties buffer.

í &Y1

Break empties buffer and is sent immediately.

&Y2

Break does not empty buffer and is sent immediately.

COMMUNICATIONS MODE

Type:

Configuration

Format:

AT [cmds] &Mn [cmds]

Description:

Selects communications mode.

Command

Mode

í &M0

Modem operates in asynchronous mode.

&M5

Modem operates in asynchronous auto-reliable mode.

&M6

Modem operates in asynchronous reliable mode.

COMPRESSION MODE

Type:

Configuration

Format:

AT [cmds] &Kn [cmds]

Description:

Selects the type of data compression that will be used.

Command

Function

&K0

Data compression disabled.

í &K1

Auto-detect compression mode.

&K2

Data compression enabled.

&K3

MNP5 data compression only enabled.

CONNECTION SPEED LOWER LIMIT

Type:

Configuration

Format:

AT [cmds] &Un [cmds]

Description:

Sets slowest allowed connection speed if &N is set to 1 or higher.

Command

Function

&U0

No minimum connect speed.

&U1

Set minimum connect speed to 300bps.

&U2

Set minimum connect speed to 1200bps.

&U3

Set minimum connect speed to 2400bps.

&U4

Set minimum connect speed to 4800bps.

&U5

Set minimum connect speed to 7200bps.

&U6

Set minimum connect speed to 9600bps.

&U7

Set minimum connect speed to 12Kbps.

&U8

Set minimum connect speed to 14.4Kbps.

&U9

Set minimum connect speed to 16.8Kbps.

&U10

Set minimum connect speed to 19.2Kbps.

&U11

Set minimum connect speed to 21.6Kbps.

&U12

Set minimum connect speed to 24Kbps.

&U13

Set minimum connect speed to 26.4Kbps.

&U14

Set minimum connect speed to 28.8Kbps.

&U15

Set minimum connect speed to 31.2Kbps.

&U16

Set minimum connect speed to 33.6Kbps.

CONNECTION SPEED UPPER LIMIT

Type:

Configuration

Format:

AT [cmds] &Nn [cmds]

Description:

Sets required connection speed if &U is set to 0; otherwise, sets fastest allowed connection speed.

Command

Function

&N0

No maximum connect speed.

&N1

Set maximum connect speed to 300bps.

&N2

Set maximum connect speed to 1200bps.

&N3

Set maximum connect speed to 2400bps.

&N4

Set maximum connect speed to 4800bps.

&N5

Set maximum connect speed to 7200bps.

&N6

Set maximum connect speed to 9600bps.

&N7

Set maximum connect speed to 12Kbps.

&N8

Set maximum connect speed to 14.4Kbps.

&N9

Set maximum connect speed to 16.8Kbps.

&N10

Set maximum connect speed to 19.2Kbps.

&N11

Set maximum connect speed to 21.6Kbps.

&N12

Set maximum connect speed to 24Kbps.

&N13

Set maximum connect speed to 26.4Kbps.

&N14

Set maximum connect speed to 28.8Kbps.

&N15

Set maximum connect speed to 31.2Kbps.

&N16

Set maximum connect speed to 33.6Kbps.

DISPLAY INFORMATION

Type:

Immediate

Format:

AT [cmds] In [cmds]

Description:

Displays information requested about the modem.

Command

Function

I0

Displays product code.

I1

Displays ROM checksum result.

I2

Displays RAM checksum result.

I3

Displays firmware version.

I4

Displays current command settings.

I5

Displays current NVRAM settings.

I6

Displays link diagnostics.

I7

Displays configuration.

I9

Displays Plug-N-Play information.

I11

Displays call statistics.

ERROR CORRECTION/COMPRESSION

Format:

AT [cmds] S15=n [cmds]

Default:

0

Range:

0 - 255

Description:

Selects which classes of error correction and compression may be used.

Bit

Value

Function

0

í 0

1

MNP and V.42 enabled during V.22 operation.

MNP and V.42 disabled during V.22 operation.

1

í 0

1

MNP and V.42 enabled during V.22bis operation.

MNP and V.42 disabled during V.22bis operation.

2

í 0

1

MNP and V.42 enabled during V.32 and V.32bis operation.

MNP and V.42 disabled during V.32 and V.32bis operation.

3

í 0

1

MNP enabled.

MNP disabled.

4

í 0

1

MNP 4 enabled.

MNP 4 disabled.

5

í 0

1

MNP 3 enabled.

MNP 3 disabled.

6

í 0

1

MNP normal.

MNP adjusted for non compliant modems.

7

í 0

1

V.42 enabled.

V.42 disabled.

EXTENDED RESULT CODES

Type:

Configuration

Format:

AT [cmds] &An [cmds]

Description:

Selects extended result codes.

Command

Function

&A0

Extended result codes disabled.

&A1

ARQ result codes enabled.

&A2

V.32 result code enabled.

&A3

Error control and compression result codes enabled.

FACTORY DEFAULTS

Type:

Immediate

Format:

AT [cmds] &Fn [cmds]

Description:

Resets the modem to the specified factory profile.

Command

Function

&F0

Modem resets to factory generic profile.

&F1

Modem resets to factory hardware flow control profile.

&F2

Modem resets to factory software flow control profile.

FLOW CONTROL CHARACTER - XON

Type:

Register

Format:

AT [cmds] S22=n [cmds]

Default:

17

Range:

11 - 127

Unit:

ASCII

Description:

Sets the character used to represent XON.

FLOW CONTROL CHARACTER - XOFF

Type:

Register

Format:

AT [cmds] S23=n [cmds]

Default:

19

Range:

11 - 127

Unit:

ASCII

Description:

Sets the character used to represent XOFF.

FLOW CONTROL TYPE

Type:

Configuration

Format:

AT [cmds] &Hn [cmds]

Description:

Sets type of flow control used by modem.

Command

Function

&H0

Flow control disabled.

&H1

CTS/RTS flow control enabled.

&H2

XON/XOFF flow control enabled.

&H3

CTS/RTS and XON/XOFF flow control enabled.

HELP - AMPERSAND

Type:

Immediate

Format:

AT [cmds] &$

Description:

Displays help on the AT& commands.

HELP - DIAL

Type:

Immediate

Format:

AT [cmds] D$

Description:

Displays help on dial modifiers.

HELP - GENERAL

Type:

Immediate

Format:

AT [cmds] $

Description:

Displays help on the basic (no prefix) AT commands.

HELP - S-REGISTERS

Type:

Immediate

Format:

AT [cmds] S$

Description:

Displays help on the S-registers.

INACTIVITY TIMER

Type:

Register

Format:

AT [cmds] S19=n [cmds]

Default:

0

Range:

0-255

Unit:

1 minute

Description:

Sets the length of time that the modem does not receive information before it disconnects; S19=0 will disable this function.

LOCK SERIAL PORT

Type:

Configuration

Format:

AT [cmds] &Bn [cmds]

Description:

Sets operation of serial port speed.

Command

Function

&B0

Serial speed follows connect speed.

&B1

Serial speed locked.

&B2

Serial speed locked in ARQ mode only.

PROFILE ON POWER-UP

Type:

Configuration

Format:

AT [cmds] Yn [cmds]

Description:

Selects the profile that the modem will reset to on power-up.

Command

Function

í Y0

Modem resets to user profile 0 on power-up.

Y1

Modem resets to user profile 1 on power-up.

Y2

Modem resets to factory generic profile on power-up.

Y3

Modem resets to factory hardware flow control profile on power-up.

Y4

Modem resets to factory software flow control profile on power-up.

RESET MODEM

Type:

Immediate

Format:

AT [cmds] Zn [cmds]

Description:

Resets the modem to the specified profile.

Command

Function

Z0

Modem resets to profile set with the Y command.

Z1

Modem resets to user profile 0.

Z2

Modem resets to user profile 1.

Z3

Modem resets to factory generic profile.

Z4

Modem resets to factory hardware flow control profile.

Z5

Modem resets to factory software flow control profile.

RESULT CODES

Type:

Configuration

Format:

AT [cmds] Qn [cmds]

Description:

Enables modem to send result codes to the DTE.

Command

Function

í Q0

Result codes enabled.

Q1

Result codes disabled.

Q2

Result codes enabled in originate mode only.

TONE DIALING TEST

Type:

Register

Format:

AT [cmds] S16=n [cmds]

Description:

Begins a tone dialing test.

Command

Function

í S16=0

Tone dialing test disabled.

S16=2

Tone dialing test enabled.

V.21 ANSWER MODE FALLBACK TIMER

Type:

Register

Format:

AT [cmds] S29=n [cmds]

Default:

20

Range:

Unidentified

Unit:

.1 second

Description:

The function of this register is unidentified.

V.32 HANDSHAKE TIME

Type:

Register

Format:

AT [cmds] S28=n [cmds]

Default:

8

Range:

0 - 255

Unit:

.1 second

Description:

Sets length of V.32 handshake. Setting S28 to 255 disables all connections except 9600bps V.32 mode.

V.34 AND V.FC OPTIONS

Format:

AT [cmds] S32=n [cmds]

Default:

2

Range:

0 - 31

Description:

Controls various V.34 and V.FC options.

Bit

Value

Function

0

í 0

1

Call indicate during V.34 operation disabled.

Call indicate during V.34 operation enabled.

1

0

í 1

V.8 during V.34 operation disabled.

V.8 during V.34 operation enabled.

2

í 0

1

V.FC modulation enabled.

V.FC modulation disabled.

3

í 0

1

V.34 modulation enabled.

V.34 modulation disabled.

4

í 0

1

33.6Kbps V.34 modulation enabled.

33.6Kbps V.34 modulation disabled.

V.34 OPTIONS

Format:

AT [cmds] S33=n [cmds]

Default:

0

Range:

0 - 191

Description:

Controls V.34 baud rate and shaping.

Bit

Value

Function

0

í 0

1

2400 baud rate enabled.

2400 baud rate disabled.

1

í 0

1

2743 baud rate enabled.

2743 baud rate disabled.

2

í 0

1

2800 baud rate enabled.

2800 baud rate disabled.

3

í 0

1

3000 baud rate enabled.

3000 baud rate disabled.

4

í 0

1

3200 baud rate enabled.

3200 baud rate disabled.

5

í 0

1

3429 baud rate enabled.

3429 baud rate disabled.

6

0

Not used.

7

í 0

1

Shaping enabled.

Shaping disabled.

V.34 OPTIONS

Format:

AT [cmds] S34=n [cmds]

Default:

0

Range:

0 - 255

Description:

Controls V.34 mapping, non-linear coding, transmit level deviation, pre-emphasis, and pre-coding.

Bit

Value

Function

0

í 0

1

8S-2D map enabled.

8S-2D map disabled.

1

í 0

1

16S-4D map enabled.

16S-4D map disabled.

2

í 0

1

32S-2D map enabled.

32S-2D map disabled.

3

í 0

1

64S-4D map enabled.

64S-4D map disabled.

4

í 0

1

Non-linear coding enabled.

Non-linear coding disabled.

5

í 0

1

Transmit level deviation enabled.

Transmit level deviation disabled.

6

í 0

1

Pre-emphasis enabled.

Pre-emphasis disabled.

7

í 0

1

Pre-coding enabled.

Pre-coding disabled.

XON/XOFF PASS-THROUGH

Type:

Configuration

Format:

AT [cmds] &In [cmds]

Description:

Selects whether XON/XOFF signals are sent to remote modem.

Command

Function

&I0

Software flow control disabled.

&I1

XON/XOFF pass-through enabled.

&I2

XON/XOFF pass-through disabled.
