RAD DATA COMMUNICATIONS, INC.
ASMI-24 MASTER (AC POWER)
|
 Card Type  |
 Modem (synchronous)  |
|
 Chipset  |
 Unidentified  |
|
 Maximum Data Rate  |
 144Kbps  |
|
 Data Modulation  |
 Proprietary (PR4)  |
|
 Data Bus  |
 Serial  |

|

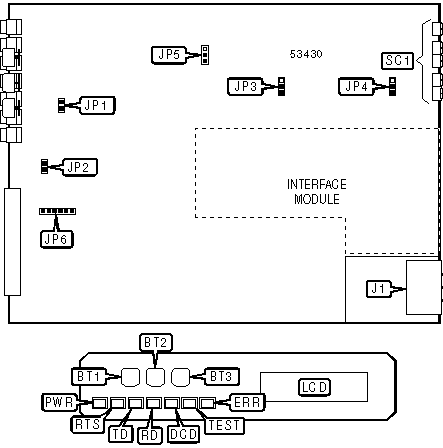

 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 CURSOR button  |
 BT1  |
 AC power in  |
 J1  |
|
 SCROLL button  |
 BT2  |
 LCD display  |
 LCD  |
|
 ENTER button  |
 BT3  |
 Line out - see pinout below  |
 SC1  |
|
 SC1 PINOUT  | |||
|
 Function  |
 Screw  |
 Function  |
 Screw  |
|
 Ground  |
 1  |
 Transmit signal  |
 4  |
|
 Receive signal  |
 2  |
 Transmit signal  |
 5  |
|
 Receive signal  |
 3  | ||
|
 USER CONFIGURABLE SETTINGS  | ||
|
 Setting  |
 Label  |
 Position  |
|
 í Modem is in management master mode |
 JP1  |
 Open  |
|
 Modem is in management slave mode  |
 JP1  |
 Closed  |
|
 í ASM-24 mode disabled |
 JP2  |
 Open  |
|
 ASM-24 mode enabled  |
 JP2  |
 Closed  |
|
 í Transmit level set to 0dBm |
 JP3  |
 Pins 1 & 2 closed  |
|
 Transmit level set to -6dBm  |
 JP3  |
 Pins 2 & 3 closed  |
|
 í Signal ground connected to chassis ground |
 JP4  |
 Pins 2 & 3 closed  |
|
 Signal ground not connected to chassis ground  |
 JP4  |
 Pins 1 & 2 closed  |
|
 í Receive level set to 0dBm |
 JP5  |
 Pins 1 & 2 closed  |
|
 Receive level set to -6dBm  |
 JP5  |
 Pins 2 & 3 closed  |
|
 í Factory configured - do not alter (jumper storage) |
 JP6  |
 N/A  |
|
 DIAGNOSTIC LED(S)  | |||
|
 LED  |
 Color  |
 Status  |
 Condition  |
|
 PWR  |
 Green  |
 On  |
 Power is on  |
|
 PWR  |
 Green  |
 Off  |
 Power is off  |
|
 RTS  |
 Yellow  |
 On  |
 RTS signal is high  |
|
 RTS  |
 Yellow  |
 Off  |
 RTS signal is low  |
|
 TD  |
 Yellow  |
 On  |
 Modem is transmitting SPACE  |
|
 TD  |
 Yellow  |
 Blinking  |
 Modem is transmitting data  |
|
 TD  |
 Yellow  |
 Off  |
 Modem is not transmitting data  |
|
 RD  |
 Yellow  |
 On  |
 Modem is receiving SPACE  |
|
 RD  |
 Yellow  |
 Blinking  |
 Modem is receiving data  |
|
 RD  |
 Yellow  |
 Off  |
 Modem is not receiving data  |
|
 DCD  |
 Yellow  |
 On  |
 Carrier signal detected  |
|
 DCD  |
 Yellow  |
 Off  |
 Carrier signal not detected  |
|
 TEST  |
 Red  |
 On  |
 Modem is in test mode  |
|
 TEST  |
 Red  |
 Off  |
 Modem is not in test mode  |
|
 ERR  |
 Yellow  |
 On  |
 Error detected in received test pattern  |
|
 ERR  |
 Yellow  |
 Off  |
 No errors detected in received test pattern  |
|
 MISCELLANEOUS TECHNICAL NOTES  |
|
 Available serial interface modules include V.24, V.35, V.36/RS-530, X.21, and G.730 interface types. Information on all except the G.730 interface modules is unidentified.  |
|
 Card Type  |
 Serial  |
|
 Chipset  |
 Unidentified  |
|
 I/O Options  |
 Serial port  |

|
 CONNECTIONS  | |
|
 Function  |
 Label  |
|
 G.703 serial port - see pinout below  |
 SC1  |
|
 SC1 PINOUT  | |||
|
 Function  |
 Screw  |
 Function  |
 Screw  |
|
 Ground  |
 1  |
 Transmit signal  |
 4  |
|
 Receive signal  |
 2  |
 Transmit signal  |
 5  |
|
 Receive signal  |
 3  | ||
|
 USER CONFIGURABLE SETTINGS  | ||
|
 Setting  |
 Label  |
 Position  |
|
 Serial port uses receive FIFO  |
 JP1  |
 Pins 2 & 3 closed  |
|
 Serial port uses transmit FIFO  |
 JP1  |
 Pins 1 & 2 closed  |
|
 Card Type  |
 Serial  |
|
 Chipset  |
 Unidentified  |
|
 I/O Options  |
 Serial port  |

|
 CONNECTIONS  | |
|
 Function  |
 Label  |
|
 G.703 serial port via RJ-45 connector  |
 J1  |
|
 USER CONFIGURABLE SETTINGS  | ||
|
 Setting  |
 Label  |
 Position  |
|
 Serial port uses receive FIFO  |
 JP1  |
 Pins 2 & 3 closed  |
|
 Serial port uses transmit FIFO  |
 JP1  |
 Pins 1 & 2 closed  |
