RAD DATA COMMUNICATIONS
FOM-E3, FOM-T3 (DC POWER, FC CONNECTORS)
|
 Card Type  |
 T3 or E3 CSU/DSU  |
|
 Chipset  |
 Unidentified  |
|
 Wire Type  |
 Fiber optic cable  |
|
 Transfer Rate  |
 34.368Mbps (FOM-E3) or 44.736Mbps (FOM-T3)  |
|
 Protocol  |
 B8ZS, HDB3  |
|
 Frame Type  |
 Unidentified  |
|
 Data Bus  |
 N/A  |
|

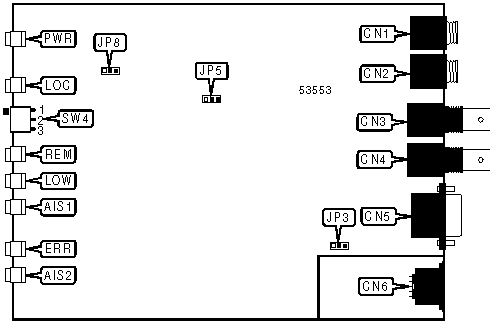

 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 T1 signal in via 75ohm coaxial cable connector  |
 CN1  |
 T1 fiber optic transmit FC connector  |
 CN4  |
|
 T1 signal out via 75ohm coaxial cable connector  |
 CN2  |
 Alarm signal connector  |
 CN5  |
|
 T1 fiber optic receive FC connector  |
 CN3  |
 DC power in  |
 CN6  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Setting  |
 Label  |
 Position  | |
| » |
 Signal ground connected to chassis ground  |
 JP3  |
 Pins 1 & 2 closed  |
|
 Signal ground not connected to chassis ground  |
 JP3  |
 Pins 2 & 3 closed  | |
| » |
 Coaxial cable length may be up to 225 feet  |
 JP5  |
 Pins 1 & 2 closed  |
|
 Coaxial cable length may be up to 450 feet  |
 JP5  |
 Pins 2 & 3 closed  | |
| » |
 Device will transmit All Ones Signal when major alarm is detected  |
 JP8  |
 Pins 1 & 2 closed  |
|
 Device will transmit nothing when major alarm is detected  |
 JP8  |
 Pins 2 & 3 closed  | |
|
 TEST MODE  | ||
|
 Setting  |
 SW4  | |
| » |
 Normal operation  |
 Position 2  |
|
 Local loopback test  |
 Position 1  | |
|
 Remote loopback test  |
 Position 3  | |
|
 DIAGNOSTIC LED(S)  | |||
|
 LED  |
 Color  |
 Status  |
 Condition  |
|
 PWR  |
 Green  |
 On  |
 Power is on  |
|
 PWR  |
 Green  |
 Off  |
 Power is off  |
|
 LOC  |
 Yellow  |
 On  |
 Device is in local loopback test mode  |
|
 LOC  |
 Yellow  |
 Off  |
 Device is not in local loopback test mode  |
|
 REM  |
 Yellow  |
 On  |
 Device is in remote loopback test mode  |
|
 REM  |
 Yellow  |
 Off  |
 Device is not in remote loopback test mode  |
|
 LOW  |
 Red  |
 On  |
 Electrical input signal is below valid signal level  |
|
 LOW  |
 Red  |
 Off  |
 Electrical input signal is within valid signal levels  |
|
 AIS1  |
 Yellow  |
 On  |
 All Ones Signal received on electrical interface  |
|
 AIS1  |
 Yellow  |
 Off  |
 All Ones Signal not received on electrical interface  |
|
 ERR  |
 Red  |
 On  |
 Bit Error Rate of optical interface is 10 -6 or worse |
|
 ERR  |
 Red  |
 Off  |
 Bit Error Rate of optical interface is better than 10 -6 |
|
 AIS2  |
 Yellow  |
 On  |
 All Ones Signal received on fiber optic interface  |
|
 AIS2  |
 Yellow  |
 Off  |
 All Ones Signal not received on fiber optic interface  |
