Card Type	Modem
Chip Set	Unidentified
I/O Options	Power, DTE/DCE serial port (15-pin connector), network interface via RJ-45 (RJ-11 optional) connector
Wiring Type	RJ-45 (RJ-11 optional) shielded twisted pair
Maximum Data Rate	64Kbps
Data Bus	External

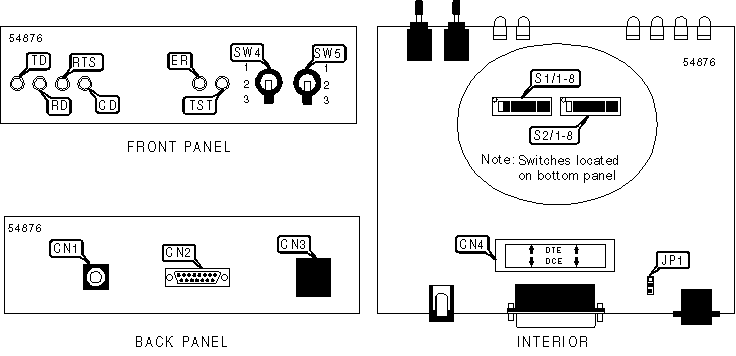

CONNECTIONS
Function			Label		Function		Label
AC power connector		CN1		Network interface via RJ-45 connector		CN3
DTE/DCE port (15-pin connector)		CN2		DTE/DCE strap		CN4
Note:	DTE/DCE strap is default configured for DCE interface. To change the interface to DTE, rotate the strap 180 degrees so the DTE arrows point to the 15-pin connector.

USER CONFIGURABLE SETTINGS
Setting	Label	Position
í Shield connected to signal ground	JP1	Pins 2 & 3 closed
Shield not connected to signal ground	JP1	Pins 1 & 2 closed
í Factory configured - do not alter	S1/1	Off
í Factory configured - do not alter	S1/2	Off
í Factory configured - do not alter	S1/3	Off
í Factory configured - do not alter	S1/4	Off
í Factory configured - do not alter	S1/5	Off
í Factory configured - do not alter	S1/6	Off
í Factory configured - do not alter	S1/7	Off
í Modem responds to V.54 sequence	S1/8	Off
Modem ignores V.54 sequence	S1/8	On
í Carrier forced high	S2/5	Off
Carrier follows terminal	S2/5	On
í Factory configured - do not alter	S2/6	Off
í Factory configured - do not alter	S2/7	Off
í Front panel switches enabled	S2/8	On
Front panel switches disabled	S2/8	Off

DATA RATE
Setting		S2/1		S2/2
32Kbps			Off			On
56Kbps	On				Off
í 64Kbps	On				On

TRANSMIT CLOCK SOURCE
Source	S2/3	S2/4
í Transmit clock generated internally	On	On
Transmit clock derived from terminal interface	On	Off
Transmit clock derived from receive line signal	Off	On

TEST PATTERN GENERATOR
Function	Label	Position
511 test pattern transmitted	SW4	1
Normal operation. Test pattern not activated	SW4	2
511/E test pattern transmitted (intentional errors inserted)	SW4	3

LOOPBACK TEST SELECTOR
Function	Label	Position
Remote digital loopback initiated	SW5	1
Normal operation. Loopback not activated	SW5	2
Activates local analog loopback	SW5	3

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TD	Red	On	Data is being transmitted (low logic level, device idle)
TD	Green	On	Data is being transmitted (high logic level)
TD	Orange	On	Transmitted data is changing rapidly
TD	None	Off	Data is not being transmitted
RD	Red	On	Data is being received (low logic level, device idle)
RD	Green	On	Data is being received (high logic level)
RD	Orange	On	Received data is changing rapidly
RD	None	Off	Data is not being received
RTS	Green	On	RTS signal is high
RTS	Red	On	RTS signal is low
CD	Green	On	Carrier signal detected
CD	Red	On	Carrier signal not detected
ER	Red	On	Bit error likely in received signal or error detected in 511 or 511/E test pattern
ER	Red	Off	Error not detected
TST	Red	On	Device has been placed in test mode by local or remote user
TST	Red	Off	Device is not conducting a test
