PATTON ELECTRONICS COMPANY
1092A
|
Card Type |
Modem |
|
Chip Set |
Unidentified |
|
I/O Options |
AC power connector, DTE/DCE serial port, network interface via RJ-45 connector |
|
Wiring Type |
RJ-45 shielded twisted pair |
|
Maximum Data Rate |
128Kbps (synchronous), 38.4Kbps (asynchronous) |
|
Data Bus |
External |
|

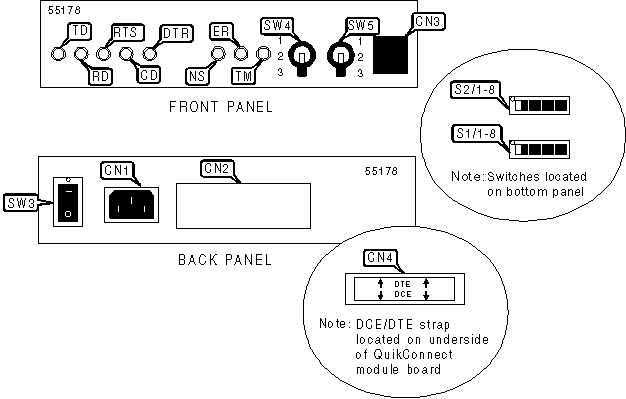

CONNECTIONS | |||||||
|
Function |
Label |
Function |
Label | ||||
|
AC power connector |
CN1 |
DCE/DTE strap |
CN4 | ||||
|
DTE/DCE port (QuikConnectä module) |
CN2 |
Power switch |
SW3 | ||||
|
Network interface via RJ-45 connector |
CN3 | ||||||
|
Note: |
QuikConnectä serial interface module can be configured as a V.24/RS-232, V.35, RS422/530, or X.21 port. The DTE/DCE strap (X.21 only) is default configured for DCE interface. To change the interface to DTE, rotate the strap 180 degrees so the DTE arrows point to the X.21 port. | ||||||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
í DSR on during local line loop |
S1/3 |
On |
|
DSR off during local line loop |
S1/3 |
Off |
|
í Modem responds to remote digital loopback requests from remote modem |
S1/8 |
On |
|
Modem ignores RDL requests from remote modem |
S1/8 |
Off |
|
í Factory configured - do not alter |
S2/2 |
Off |
|
í Modem ignores LAL requests from DTE |
S2/3 |
Off |
|
Modem responds to local analog loopback requests from DTE |
S2/3 |
On |
|
í 2-wire twisted pair operation enabled |
S2/4 |
On |
|
4-wire twisted pair operation enabled |
S2/4 |
Off |
|
í Factory configured - do not alter |
S2/5 |
Off |
|
í Modem responds to remote digital loopback requests from DTE |
S2/6 |
On |
|
Modem ignores RDL requests from DTE |
S2/6 |
Off |
|
ASYC/SYNC OPERATION | ||||
|
Setting |
S1/4 |
S1/5 | ||
|
í Factory configured - do not alter (async/sync operation enabled) |
Off |
Off | ||
|
DATA RATE | |||||||||||
|
Synchronous Data Rate |
Asynchronous Data Rate |
S1/1 |
S1/2 |
S2/1 | |||||||
|
19.2Kbps |
Reserved |
Off |
Off |
On | |||||||
|
32Kbps |
Reserved |
On |
On |
Off | |||||||
|
56Kbps |
Reserved |
Off |
On |
Off | |||||||
|
í 64Kbps |
Reserved |
On |
Off |
Off | |||||||
|
128Kbps |
0-38.4Kbps |
Off |
Off |
Off | |||||||
|
TRANSMIT CLOCK SOURCE | ||
|
Source |
S1/6 |
S1/7 |
|
í Transmit clock generated internally |
On |
On |
|
Transmit clock derived from terminal interface |
Off |
On |
|
Transmit clock derived from receive line signal |
On |
Off |
|
Hardware reset |
Off |
Off |
|
CONTROL PORT DATA RATE | |||||
|
Setting |
S2/7 |
S2/8 | |||
|
í 9600bps |
On |
On | |||
|
19.2Kbps |
Off |
On | |||
|
LOOPBACK TEST SELECTOR | ||
|
Function |
Label |
Position |
|
Activates local analog loopback |
SW4 |
1 |
|
Normal operation. Loopback not activated |
SW4 |
2 |
|
Remote digital loopback initiated |
SW4 |
3 |
|
TEST PATTERN GENERATOR | ||
|
Function |
Label |
Position |
|
511/E test pattern transmitted (intentional errors inserted) |
SW5 |
1 |
|
Normal operation. Test pattern not activated |
SW5 |
2 |
|
511 test pattern transmitted |
SW5 |
3 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
TD |
Red |
On |
Data is being transmitted (low logic level, device idle) |
|
TD |
Green |
On |
Data is being transmitted (high logic level) |
|
TD |
None |
Off |
Data is not being transmitted |
|
RD |
Red |
On |
Data is being received (low logic level, device idle) |
|
RD |
Green |
On |
Data is being received (high logic level) |
|
RD |
None |
Off |
Data is not being received |
|
CTS |
Green |
On |
CTS signal is high |
|
CTS |
Green |
Off |
CTS signal is low |
|
CD |
Green |
On |
Carrier signal detected |
|
CD |
Red |
On |
Carrier signal not detected |
|
DTR |
Green |
On |
DTR signal is high |
|
DTR |
Green |
Off |
DTR signal is low |
|
NS |
Red |
On |
Local modem is not connected to remote modem |
|
NS |
Red |
Off |
Local modem is connected to remote modem |
|
ER |
Red |
On |
Bit error likely in received signal or error detected in 511 or 511/E test pattern |
|
ER |
Red |
Off |
Error not detected |
|
TM |
Red |
On |
Device has been placed in test mode by local or remote user |
|
TM |
Red |
Off |
Device is not conducting a test |
