PCA11IM (JUMPER VER.)

PHILIPS CONSUMER ELECTRONICS, CO.

Card Type

Modem

Chip Set

Unidentified

I/O Options

Line out, line in, microphone in, speaker out

Maximum Modem Rate

14.4Kbps

Maximum Fax Rate

14.4Kbps

Data Modulation Protocol

Bell 103/212A

ITU-T V.22, V.22bis, V.23, V.32, V.32bis

Fax Modulation Protocol

ITU-T V.17, V.27ter, V.29

Error Correction/Compression

MNP5, V.42, V.42bis

Fax Class

Class I & II

Data Bus

8-bit ISA

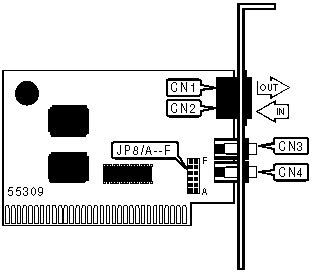

CONNECTIONS

Function

Label

Function

Label

Line out (RJ-11)

CN1

Speaker out

CN3

Line in (RJ-11)

CN2

Microphone in

CN4

SERIAL PORT ADDRESS

Setting

JP8/A

JP8/B

COM1 (3F8h)

Closed

Closed

COM2 (2F8h)

Open

Closed

COM3 (3E8h)

Closed

Open

COM4 (2E8h)

Open

Open

INTERRUPT

Setting

JP8/C

JP8/D

JP8/E

JP8/F

IRQ2

Closed

Open

Open

Open

IRQ3

Open

Closed

Open

Open

IRQ4

Open

Open

Closed

Open

IRQ5

Open

Open

Open

Closed

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, A/

A, E, H, M, O, P, T, V, X, Y, Z

&C, &F, &G, &M, &T, &V, &W, &X, &Y, &Z

Extended AT Commands

%A, %C, %E, %Q

\A, \B, \C, \G, \J, \K, \Q, \T, \X

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9,S10, S11, S12, S14, S16, S18, S21, S22, S23, S25

S26, S27, S30, S91

Note: See MHI Help File for full command documentation.

PROPRIETARY AT COMMAND SET

AUTO-MODE DETECTION

Type:

Configuration

Format:

AT [cmds] Nn [cmds]

Description:

Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed.

Command

Function

N0

Auto-mode detection disabled; handshake begins at line speed designated by the %B command

í N1

Auto-mode detection enabled; handshake begins at line speed designated by the %B command and DTE speed

COMMUNICATION PROTOCOLS

Type:

Configuration

Format:

AT [cmds] Bn [cmds]

Description:

Selects the communication protocol for data calls

Note: The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols.

Command

Protocol

B0

ITU-T V.22 at 1200bps

í B1

Bell 212A at 1200bps

B2

ITU-T V.22 at 75/1200Kbps in originate mode, 1200/75Kbps in answer mode

DATA SET READY (DSR)

Type:

Configuration

Format:

AT [cmds] &Sn [cmds]

Description:

Selects DSR options

Command

Function

í &S0

DSR forced high

&S1

DSR high only while modem is handshaking or connected

DATA TERMINAL READY (DTR)

Type:

Configuration

Format:

AT [cmds] &Dn [cmds]

Description:

Selects modem response to DTR

Command

Function

í &D0

DTR ignored

&D1

DTR toggle causes online command mode

&D2

DTR toggle causes modem to go on-hook

&D3

Modem reset on DTR toggle

DIAL

Type:

Immediate

Format:

AT [cmds] D<#> [cmds]

Description:

Dials telephone number according to any modifiers included in the string

Note:

Any combination of modifiers can be used to produce the desired dial functions in sequence.

Command

Function

DP

Pulse dialing enabled

DR

Answer mode enabled; originate mode disabled following handshake initiation.

DS=n

Dial stored telephone number n

DT

Tone dialing enabled/Pulse dialing disabled

DW

Dialing resumed following dial tone detection

D,

Dialing paused for amount of time specified in S8 register

D!

Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.

D@

Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string.

D^

Data calling tone enabled

D;

Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command.

FLOW CONTROL

Type:

Configuration

Format:

AT [cmds] &Kn [cmds]

Description:

Enables flow control options

Command

Function

&K0

Flow control disabled

&K3

RTS/CTS flow control enabled

í &K4

XON/XOFF flow control enabled

LINE TYPE

Type:

Configuration

Format:

AT [cmds] &Ln [cmds]

Description:

Selects line type

Command

Line Type

í &L0

Switched line (PSTN/Dial-up)

&L1

Leased line

&L2

Power-on leased line

PULSE DIALING RATIO

Type:

Configuration

Format:

AT [cmds] &Pn [cmds]

Description:

Selects pulse dial make/break ratio

Command

Function

í &P0

39/61ms at 10pps (North America)

&P1

33/67ms at 10pps (Europe)

&P2

39/61ms at 20pps

REPORT INFORMATION

Type:

Immediate

Format:

AT [cmds] In [cmds]

Description:

Displays information requested

Command

Function

I0

Reports product code

I1

Reports ROM checksum

I2

Tests and reports ROM checksum

I3

Reports model ID & firmware ID

I5

Reports country code

RESULT CODES

Type:

Configuration

Format:

AT [cmds] Qn [cmds]

Description:

Enables modem to send result codes to the DTE

Command

Function

í Q0

Result code sending enabled

Q1

Result code sending disabled

Q2

"Ring" result code disabled. In answer mode; CONNECT and NO CARRIER disabled

SPEAKER VOLUME

Type:

Configuration

Format:

AT [cmds] Ln [cmds]

Description:

Controls speaker volume

Command

Function

L0

Low volume setting

L1

Low volume setting

í L2

Medium volume setting

L3

Highest volume setting

EXTENDED AT COMMAND SET

CONNECTION SPEED

Type:

Configuration

Format:

AT [cmds] %Bn [cmds]

Description:

Selects maximum modem connection speed

Command

Function

%B300

300bps

%B1200

1200bps

%B2400

2400bps

%B4800

4800bps

%B7200

7200bps

%B9600

9600bps

%B12000

12.0Kbps

í %B14400

14.4Kbps

CONNECT MODE

Type:

Configuration

Format:

AT [cmds] \Nn [cmds]

Description:

Controls the type of connection the modem will operate in

Command

Function

\N0

Normal mode enabled

\N1

Direct mode enabled

\N2

MNP reliable mode enabled

í \N3

Auto-reliable mode enabled

\N4

V.42 reliable mode enabled

\N5

V.42/Normal mode enabled

\N6

V.42/MNP mode enabled

\N7

MNP/Normal mode enabled

EXTENDED RESULT CODES

Type:

Configuration

Format:

AT [cmds] \Vn [cmds]

Description:

Selects extended result codes

Command

Function

\V0

DCE speed displayed. Extended result codes disabled

\V1

DCE speed; simple reliable mode extended result codes enabled

í \V2

DCE speed; detailed reliable mode extended result codes enabled

\V3

DTE speed only

S(status) -REGISTERS

AUTO-RELIABLE FALLBACK CHARACTER

Type:

Register

Format:

AT [cmds] S29=n [cmds]

Range:

0-127

Unit:

ASCII

Description:

Sets the character used as the auto-reliable fallback character

BIT-MAPPED REGISTER S15

Format:

AT [cmds] S15=n [cmds]

Range:

0-255

Unit:

Bit-mapped

Description:

Controls MNP options, break types, DTE rate adjustments.

Note:

Further information is currently unavailable

BIT-MAPPED REGISTER S17

Format:

AT [cmds] S17=n [cmds]

Range:

0-255

Unit:

Bit-mapped

Description:

Controls relaible mode, data compression, and extended responses

Note:

Further information is currently unavailable

BIT-MAPPED REGISTER S19

Format:

AT [cmds] S19=n [cmds]

Range:

0-255

Unit:

Bit-mapped

Description:

Determines flow control, echo, XON/XOFF pass-through

Note:

Further information is currently unavailable

BIT-MAPPED REGISTER S20

Format:

AT [cmds] S20=n [cmds]

Range:

0-255

Unit:

Bit-mapped

Description:

Sets PC/NEC baud rate options, guard tones

Note:

Further information is currently unavailable

BIT-MAPPED REGISTER S24

Format:

AT [cmds] S24=n [cmds]

Range:

0-255

Unit:

Bit-mapped

Description:

Controls make/break ratio, auto retrain, V.34/VFC, auto mode

Note:

Further information is currently unavailable

BIT-MAPPED REGISTER S28

Format:

AT [cmds] S28=n [cmds]

Range:

Unidentified

Unit:

Bit-mapped

Description:

Determine DCE rate

Note:

Further information is currently unavailable

SLEEP TIMER

Type:

Register

Format

AT [cmds] S13=n [cmds]

Range:

0-255

Unit:

1 second

Description:

Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode.

Card Type	Modem
Chip Set	Unidentified
I/O Options	Line out, line in, microphone in, speaker out
Maximum Modem Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation Protocol	Bell 103/212A ITU-T V.22, V.22bis, V.23, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I & II
Data Bus	8-bit ISA

CONNECTIONS
Function	Label		Function		Label
Line out (RJ-11)		CN1		Speaker out		CN3
Line in (RJ-11)		CN2		Microphone in		CN4

SERIAL PORT ADDRESS
Setting	JP8/A	JP8/B
COM1 (3F8h)	Closed	Closed
COM2 (2F8h)	Open	Closed
COM3 (3E8h)	Closed	Open
COM4 (2E8h)	Open	Open

INTERRUPT
Setting	JP8/C	JP8/D	JP8/E	JP8/F
IRQ2	Closed	Open	Open	Open
IRQ3	Open	Closed	Open	Open
IRQ4	Open	Open	Closed	Open
IRQ5	Open	Open	Open	Closed

AUTO-MODE DETECTION
Type:	Configuration
Format:	AT [cmds] Nn [cmds]
Description:	Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed.
Command	Function
N0	Auto-mode detection disabled; handshake begins at line speed designated by the %B command
í N1	Auto-mode detection enabled; handshake begins at line speed designated by the %B command and DTE speed

COMMUNICATION PROTOCOLS
Type:	Configuration
Format:	AT [cmds] Bn [cmds]
Description:	Selects the communication protocol for data calls
Note: The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols.
Command	Protocol
B0	ITU-T V.22 at 1200bps
í B1	Bell 212A at 1200bps
B2	ITU-T V.22 at 75/1200Kbps in originate mode, 1200/75Kbps in answer mode

DATA SET READY (DSR)
Type:	Configuration
Format:	AT [cmds] &Sn [cmds]
Description:	Selects DSR options
Command	Function
í &S0	DSR forced high
&S1	DSR high only while modem is handshaking or connected

DATA TERMINAL READY (DTR)
Type:	Configuration
Format:	AT [cmds] &Dn [cmds]
Description:	Selects modem response to DTR
Command	Function
í &D0	DTR ignored
&D1	DTR toggle causes online command mode
&D2	DTR toggle causes modem to go on-hook
&D3	Modem reset on DTR toggle

DIAL
Type:	Immediate
Format:	AT [cmds] D<#> [cmds]
Description:	Dials telephone number according to any modifiers included in the string
Note:	Any combination of modifiers can be used to produce the desired dial functions in sequence.
Command	Function
DP	Pulse dialing enabled
DR	Answer mode enabled; originate mode disabled following handshake initiation.
DS=n	Dial stored telephone number n
DT	Tone dialing enabled/Pulse dialing disabled
DW	Dialing resumed following dial tone detection
D,	Dialing paused for amount of time specified in S8 register
D!	Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.
D@	Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string.
D^	Data calling tone enabled
D;	Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command.

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] &Kn [cmds]
Description:	Enables flow control options
Command	Function
&K0	Flow control disabled
&K3	RTS/CTS flow control enabled
í &K4	XON/XOFF flow control enabled

LINE TYPE
Type:	Configuration
Format:	AT [cmds] &Ln [cmds]
Description:	Selects line type
Command	Line Type
í &L0	Switched line (PSTN/Dial-up)
&L1	Leased line
&L2	Power-on leased line

PULSE DIALING RATIO
Type:	Configuration
Format:	AT [cmds] &Pn [cmds]
Description:	Selects pulse dial make/break ratio
Command	Function
í &P0	39/61ms at 10pps (North America)
&P1	33/67ms at 10pps (Europe)
&P2	39/61ms at 20pps

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports product code
I1	Reports ROM checksum
I2	Tests and reports ROM checksum
I3	Reports model ID & firmware ID
I5	Reports country code

RESULT CODES
Type:	Configuration
Format:	AT [cmds] Qn [cmds]
Description:	Enables modem to send result codes to the DTE
Command	Function
í Q0	Result code sending enabled
Q1	Result code sending disabled
Q2	"Ring" result code disabled. In answer mode; CONNECT and NO CARRIER disabled

SPEAKER VOLUME
Type:	Configuration
Format:	AT [cmds] Ln [cmds]
Description:	Controls speaker volume
Command	Function
L0	Low volume setting
L1	Low volume setting
í L2	Medium volume setting
L3	Highest volume setting

CONNECTION SPEED
Type:	Configuration
Format:	AT [cmds] %Bn [cmds]
Description:	Selects maximum modem connection speed
Command	Function
%B300	300bps
%B1200	1200bps
%B2400	2400bps
%B4800	4800bps
%B7200	7200bps
%B9600	9600bps
%B12000	12.0Kbps
í %B14400	14.4Kbps

CONNECT MODE
Type:	Configuration
Format:	AT [cmds] \Nn [cmds]
Description:	Controls the type of connection the modem will operate in
Command	Function
\N0	Normal mode enabled
\N1	Direct mode enabled
\N2	MNP reliable mode enabled
í \N3	Auto-reliable mode enabled
\N4	V.42 reliable mode enabled
\N5	V.42/Normal mode enabled
\N6	V.42/MNP mode enabled
\N7	MNP/Normal mode enabled

EXTENDED RESULT CODES
Type:	Configuration
Format:	AT [cmds] \Vn [cmds]
Description:	Selects extended result codes
Command	Function
\V0	DCE speed displayed. Extended result codes disabled
\V1	DCE speed; simple reliable mode extended result codes enabled
í \V2	DCE speed; detailed reliable mode extended result codes enabled
\V3	DTE speed only

AUTO-RELIABLE FALLBACK CHARACTER
Type:	Register
Format:	AT [cmds] S29=n [cmds]
Range:	0-127
Unit:	ASCII
Description:	Sets the character used as the auto-reliable fallback character

BIT-MAPPED REGISTER S15
Format:	AT [cmds] S15=n [cmds]
Range:	0-255
Unit:	Bit-mapped
Description:	Controls MNP options, break types, DTE rate adjustments.
Note:	Further information is currently unavailable

BIT-MAPPED REGISTER S17
Format:	AT [cmds] S17=n [cmds]
Range:	0-255
Unit:	Bit-mapped
Description:	Controls relaible mode, data compression, and extended responses
Note:	Further information is currently unavailable

BIT-MAPPED REGISTER S19
Format:	AT [cmds] S19=n [cmds]
Range:	0-255
Unit:	Bit-mapped
Description:	Determines flow control, echo, XON/XOFF pass-through
Note:	Further information is currently unavailable

BIT-MAPPED REGISTER S20
Format:	AT [cmds] S20=n [cmds]
Range:	0-255
Unit:	Bit-mapped
Description:	Sets PC/NEC baud rate options, guard tones
Note:	Further information is currently unavailable

BIT-MAPPED REGISTER S24
Format:	AT [cmds] S24=n [cmds]
Range:	0-255
Unit:	Bit-mapped
Description:	Controls make/break ratio, auto retrain, V.34/VFC, auto mode
Note:	Further information is currently unavailable

BIT-MAPPED REGISTER S28
Format:	AT [cmds] S28=n [cmds]
Range:	Unidentified
Unit:	Bit-mapped
Description:	Determine DCE rate
Note:	Further information is currently unavailable

SLEEP TIMER
Type:	Register
Format	AT [cmds] S13=n [cmds]
Range:	0-255
Unit:	1 second
Description:	Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode.
