STOLLMANN GMBH
TA-D
|
Card Type |
ISDN TA |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
64Kbps x 2 |
|
Data Bus |
External |
|
ISDN Modulation Protocol |
V.110, 1TR6, DSS1, X.30 |
|

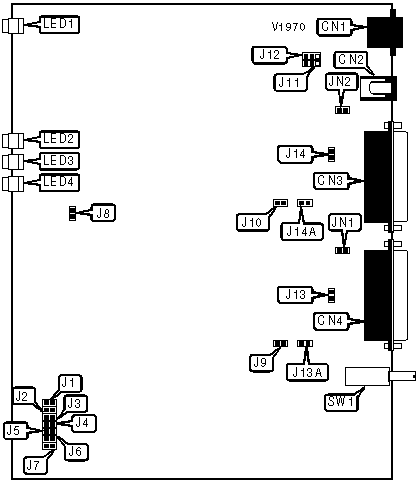

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
V.24 or X.21 port 1 |
CN4 | |||
|
DC power |
CN2 |
Reset button |
SW1 | |||
|
V.24 or X.21 port 2 |
CN3 | |||||
Note: X.21 functionality is provided by an included adapter cable. | ||||||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
í Editor debug mode disabled |
J3 |
Open |
|
Editor debug mode enabled |
J3 |
Closed |
|
í TA will use saved profile |
J4 |
Open |
|
TA will use default profile only |
J4 |
Closed |
|
í Remote configuration enabled |
J6 |
Open |
|
Remote configuration disabled |
J6 |
Closed |
|
í Port 1 is in V.24 mode |
J9 |
Open |
|
Port 1 is in X.21 mode |
J9 |
Closed |
|
í Port 2 is in V.24 mode |
J10 |
Open |
|
Port 2 is in X.21 mode |
J10 |
Closed |
|
í Port 1 is in DCE mode |
J13 |
Closed |
|
Port 1 is in DTE mode |
J13 |
Open |
|
í Pin 25 of port 1 is not connected |
J13A |
Open |
|
Pin 25 of port 1 is +9V DC |
J13A |
Closed |
|
í Port 2 is in DCE mode |
J14 |
Closed |
|
Port 2 is in DTE mode |
J14 |
Open |
|
í Pin 25 of port 2 is not connected |
J14A |
Open |
|
Pin 25 of port 2 is +9V DC |
J14A |
Closed |
|
í Pin 1 of port 1 is capacitive ground |
JN1 |
Open |
|
Pin 1 of port 1 is galvanic ground |
JN1 |
Closed |
|
í Pin 1 of port 2 is capacitive ground |
JN2 |
Open |
|
Pin 1 of port 2 is galvanic ground |
JN2 |
Closed |
|
í Factory configured - do not alter |
J5 |
Unidentified |
|
í Factory configured - do not alter |
J7 |
Unidentified |
|
í Factory configured - do not alter |
J8 |
Unidentified |
|
ISDN INTERFACE TYPE | ||
|
Setting |
J11 |
J12 |
|
S-interface |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
U-interface |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
LINE TYPE | ||
|
Setting |
J1 |
J2 |
|
Public ISDN |
Open |
Open |
|
ISDN PBX |
Closed |
Open |
|
ISDN PBX with LLC |
Open |
Closed |
|
DIAGNOSTIC LED(S) | |||
|
LED1 Status |
Condition | ||
|
On |
Power is on | ||
|
Off |
Power is off | ||
|
Blinking |
ISDN failed | ||
|
LED2 Status |
LED3 Status |
LED4 Status |
Condition |
|
Blinking |
Off |
Off |
TA is resetting |
|
Off |
Off |
Off |
Normal operation for channel 1 |
|
On |
Off |
Off |
ISDN connection established on channel 1 |
|
Alternating |
Alternating |
Off |
Hotline call repetition in progress on channel 1 |
|
Blinking |
Blinking |
Off |
Hotline call repetition error on channel 1 |
|
Blinking |
Off |
Off |
Hotline active without connection on channel 1 |
|
On |
Off |
Off |
Profile editor in use locally on channel 1 |
|
On |
On |
On |
Profile editor password being entered on channel 1 |
|
On |
Blinking |
Blinking |
Profile editor in use remotely on channel 1 |
|
Off |
Off |
On |
Unable to determine correct connection rate on channel 1 |
|
Off |
On |
Off |
Buffer has overflowed on channel 1 |
|
Alternating |
Blinking |
Alternating |
Checksum error has been detected on channel 1 |
|
LED5 Status |
LED6 Status |
LED7 Status |
Condition |
|
Blinking |
Off |
Off |
TA is resetting |
|
Off |
Off |
Off |
Normal operation for channel 2 |
|
On |
Off |
Off |
ISDN connection established on channel 2 |
|
Alternating |
Alternating |
Off |
Hotline call repetition in progress on channel 2 |
|
Blinking |
Blinking |
Off |
Hotline call repetition error on channel 2 |
|
Blinking |
Off |
Off |
Hotline active without connection on channel 2 |
|
On |
Off |
Off |
Profile editor in use locally on channel 2 |
|
On |
On |
On |
Profile editor password being entered on channel 2 |
|
On |
Blinking |
Blinking |
Profile editor in use remotely on channel 2 |
|
Off |
Off |
On |
Unable to determine correct connection rate on channel 2 |
|
Off |
On |
Off |
Buffer has overflowed on channel 2 |
|
Alternating |
Blinking |
Alternating |
Checksum error has been detected on channel 2 |
Proprietary Command Sets
See document V1971 for a full command summary.
