SUPRAFAX MODEM 288I PNP

SUPRA DIAMOND

Card Type

Fax, Modem (asynchronous)

Chip Set

Rockwell

Maximum Data Rate

28.8Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

16-bit ISA

Fax Class

Class I & II

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34

Rockwell V.FC

Fax Modulation Protocol

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, MNP10, V.42, V.42bis

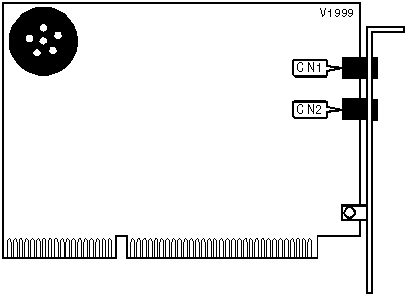

CONNECTIONS

Function

Label

Function

Label

Line out/in - Unidentified

CN1

Line in/out - Unidentified

CN2

Proprietary AT Command Set

See document V1998 for a full command summary.

Card Type	Fax, Modem (asynchronous)
Chip Set	Rockwell
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	16-bit ISA
Fax Class	Class I & II
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 Rockwell V.FC
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, MNP10, V.42, V.42bis

CONNECTIONS
Function	Label		Function		Label
Line out/in - Unidentified		CN1		Line in/out - Unidentified		CN2
