SUPRA DIAMOND
SUPRAFAX MODEM 144I
|
Card Type |
Fax, Modem (asynchronous) |
|
Chip Set |
Rockwell |
|
Maximum Data Rate |
14.4Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, MNP10, V.42, V.42bis |
|

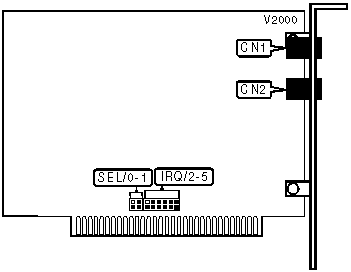

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out/in - Unidentified |
CN1 |
Line in/out - Unidentified |
CN2 | |||
|
SERIAL PORT ADDRESS | ||
|
Setting |
SEL/0 |
SEL/1 |
|
COM1 (3F8h) |
Open |
Open |
|
í COM2 (2F8h) |
Closed |
Open |
|
COM3 (3E8h) |
Open |
Closed |
|
COM4 (2E8h) |
Closed |
Closed |
|
INTERRUPT SELECTION | ||||
|
Setting |
IRQ/2 |
IRQ/3 |
IRQ/4 |
IRQ/5 |
|
2 |
Closed |
Open |
Open |
Open |
|
í 3 |
Open |
Closed |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Open |
Closed |
Proprietary AT Command Set
See document V1998 for a full command summary.
