SIMA TECHNOLOGY CO., LTD.
V.34PVS
|
Card Type |
Modem (synchronous/asynchronous) |
|
Chip Set |
Unidentified |
|
I/O Options |
SVD, microphone in, speaker out |
|
Maximum Data Rate |
33.6Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
16-bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 Rockwell V.FC |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

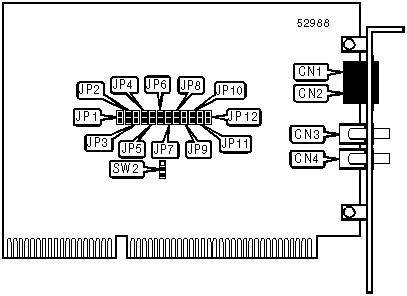

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
Microphone in |
CN3 | |||
|
Line in |
CN2 |
Speaker out |
CN4 | |||
|
PLUG-N-PLAY SELECTION | ||
|
Setting |
JP12 |
SW2 |
|
Enabled |
Closed |
Pins 1 & 2 closed |
|
í Disabled |
Open |
Pins 2 & 3 closed |
|
SERIAL PORT ADDRESS SELECTION | ||
|
Setting |
JP1 |
JP2 |
|
3F8h (COM1:) |
Closed |
Closed |
|
2F8h (COM2:) |
Closed |
Open |
|
3E8h (COM3:) |
Open |
Closed |
|
2E8h (COM4:) |
Open |
Open |
|
INTERRUPT SELECTION | |||||||||
|
Setting |
JP3 |
JP4 |
JP5 |
JP6 |
JP7 |
JP8 |
JP9 |
JP10 |
JP11 |
|
í IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
SUPPORTED STANDARD COMMANDS |
|
Basic AT Commands |
|
+++, ‘comma’, A/ |
|
A, B, D, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|
&C, &D, &F, &G, &K, &M, &P, &Q, &R, &S, &T, &V, &W, &X, &Y, &Z |
|
Extended AT Commands |
|
\A, \B, \G, \K, \L, \N, \W |
|
%C, %F, %L, %Q, %T |
|
Special AT Commands |
|
#CID, :E, *H, -K, )M, @M, +MS, -Q |
|
S-Registers |
|
S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S12, S14, S16, S18, S21, S22, S23, S24, S25, S27, S29 |
|
S30, S31, S32, S33, S36, S38, S39, S40, S46, S48, S86, S91, S92, S95, S201 |
Note: See MHI documentation for complete information. |
Proprietary AT Command Set
|
SIMULTANEOUS VOICE MODE | |||
|
Type: |
Immediate | ||
|
Format: |
AT [cmds] -SMS=x,y,z,a [cmds] | ||
|
Description: |
Selects which simultaneous voice mode the modem will operate in. | ||
|
Command |
Function | ||
|
x =0 |
Simultaneous voice mode disabled. | ||
|
x =2 |
SVD mode enabled. | ||
|
x =3 |
Auto-detect correct mode. | ||
|
y , z=300 |
Set minimum or maximum total speed at 300bps, respectively. | ||
|
y , z=1200 |
Set minimum or maximum total speed at 1200bps, respectively. | ||
|
y , z=2400 |
Set minimum or maximum total speed at 2400bps, respectively. | ||
|
y , z=4800 |
Set minimum or maximum total speed at 4800bps, respectively. | ||
|
y , z=7200 |
Set minimum or maximum total speed at 7200bps, respectively. | ||
|
SIMULTANEOUS VOICE MODE (CON’T) | ||
|
Command |
Function | |
|
y , z=9600 |
Set minimum or maximum total speed at 9600bps, respectively. | |
|
y , z=12000 |
Set minimum or maximum total speed at 12Kbps, respectively. | |
|
y , z=14400 |
Set minimum or maximum total speed at 14.4Kbps, respectively. | |
|
y , z=16800 |
Set minimum or maximum total speed at 16.8Kbps, respectively. | |
|
y , z=19200 |
Set minimum or maximum total speed at 19.2Kbps, respectively. | |
|
y , z=21600 |
Set minimum or maximum total speed at 21.6Kbps, respectively. | |
|
y , z=24000 |
Set minimum or maximum total speed at 24Kbps, respectively. | |
|
y , z=26400 |
Set minimum or maximum total speed at 26.4Kbps, respectively. | |
|
y , z=28800 |
Set minimum or maximum total speed at 28.8Kbps, respectively. | |
|
z =0 |
Auto-detect correct ML288 baud rate. | |
|
z =1 |
Set ML288 symbol rate to 2400 bits/baud. | |
|
z =2 |
Set ML288 symbol rate to 2743 bits/baud. | |
|
z =3 |
Set ML288 symbol rate to 2800 bits/baud. | |
|
z =4 |
Set ML288 symbol rate to 3000 bits/baud. | |
|
z =5 |
Set ML288 symbol rate to 3200 bits/baud. | |
|
z =6 |
Set ML288 symbol rate to 3429 bits/baud. | |
|
SVD DATA BURST | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] -SMC=n [cmds] | |
|
Description: |
Configures the SVD data burst mode. | |
|
Command |
Function | |
|
-SMC=0 |
SVD data burst disabled. | |
|
í -SMC=1 |
SVD data burst enabled. | |
|
SVD MODULATION | ||
|
Type: |
Configuration | |
|
Format: |
AT [cmds] -SQS=m,n [cmds] | |
|
Description: |
Selects the modulation type used by SVD mode. | |
|
Command |
Function | |
|
x =0 |
Select V.61 modulation. | |
|
x =1 |
Select ML144 modulation. | |
|
x =2 |
Select ML288 modulation. | |
|
y =0 |
Auto-detect modulation mode disabled. | |
|
y =1 |
Auto-detect modulation mode enabled. | |
|
VOICE DEVICE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] #VLS=n [cmds] |
|
Description: |
Selects the I/O device for the DSP chip. |
|
Command |
Function |
|
í #VLS=0 |
Telephone line and handset used for voice I/O. |
|
#VLS=1 |
Telephone handset used for voice I/O. |
|
#VLS=2 |
Internal speaker only used for voice I/O. |
|
#VLS=3 |
External microphone only used for voice I/O. |
|
#VLS=4 |
Telephone line and handset used for voice I/O; internal speaker enabled. |
|
#VLS=5 |
Headset used for voice I/O. |
|
#VLS=6 |
Speakerphone used for voice I/O. |
See SIMA TECHNOLOGY CO., LTD. V.34SV for a full command summary.
