THE COMPLETE PC
THE COMPLETE FAX/9600
|
Card Type |
Modem/fax |
|
Chipset |
Rockwell |
|
I/O Options |
Scanner port, speaker out |
|
Maximum Data Rate |
2400bps (with modem daughterboard) |
|
Maximum Fax Rate |
9600bps |
|
Data Modulation |
Unidentified |
|
Fax Modulation |
Unidentified |
|
Fax Class |
Unidentified |
|
Data Bus |
8-bit ISA |
|

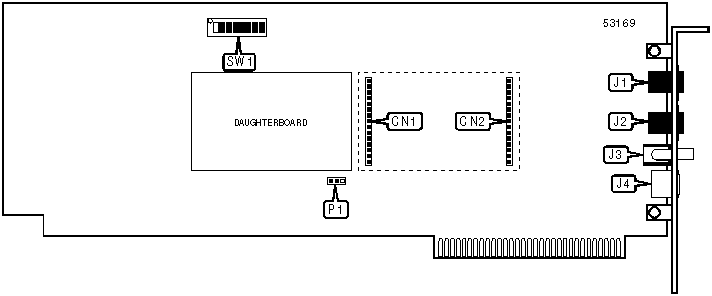

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header for modem daughterboard |
CN1 |
Telephone line out |
J2 |
|
Header for modem daughterboard |
CN2 |
Speaker out |
J3 |
|
Telephone line in |
J1 |
Scanner port |
J4 |
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
í Modem daughterboard not installed |
P1 |
Pins 1 & 2 closed |
|
Modem daughterboard installed |
P1 |
Pins 2 & 3 closed |
|
í Modem address is 3F8h (COM1:) |
SW1/4 |
Off |
|
Modem address is 2F8h (COM2:) |
SW1/4 |
On |
|
BASE I/O ADDRESS SELECTION | |||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
|
220h |
On |
On |
On |
|
260h |
On |
On |
Off |
|
2A0h |
On |
Off |
On |
|
í 2E0h |
On |
Off |
Off |
|
320h |
Off |
On |
On |
|
360h |
Off |
On |
Off |
|
3A0h |
Off |
Off |
On |
|
3E0h |
Off |
Off |
Off |
|
MODEM/SCANNER INTERRUPT SELECTION | ||||
|
Setting |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
2 |
On |
Off |
Off |
Off |
|
3 |
Off |
On |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
|
5 |
Off |
Off |
Off |
On |
|
í Disabled |
Off |
Off |
Off |
Off |
|
SUPPORTED STANDARD COMMANDS |
The command set is unidentified. |
