Card Type	Modem
Chipset	Rockwell RCV288DPi
I/O Options	Microphone in, modem audio, speaker out, voice
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 Rockwell V.FC
Fax Modulation	ITU-T V.17, V.21CH2, V.27ter, V.29, V.33
Error Correction/Compression	MNP5, MNP10, V.42, V.42bis
Fax Class	Class I & II
Data Bus	16-bit ISA
Card Size	Full height, half length

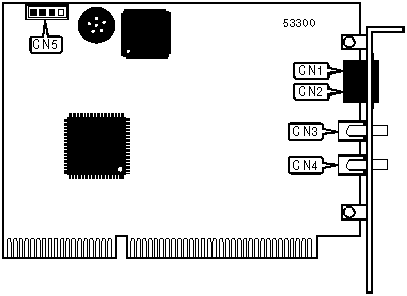

CONNECTIONS
Function	Label	Function	Label
Telephone line in	CN1	Speaker out	CN4
Telephone line out	CN2	Modem audio in/out	CN5
Microphone in	CN3

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, B, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &M, &P, &Q, &R, &S, &T, &V, &W, &X, &Y, &Z

Extended AT Commands

\A, \B, \K, \N

%C, %E, %L, %Q

Special AT Commands

#CID, +MS

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S24, S25

S26, S27, S29, S30, S31, S32, S33, S36, S38, S39, S40, S41, S46, S48, S86, S91, S92, S95

S201

Note: See MHI help file for complete information.
