TORNADO CO., LTD
WEBJET 128
|
Card Type |
ISDN TA |
|
Chip Set |
Unidentified |
|
I/O Options |
RJ-45 ISDN BRI U interface, 9-pin DTE port, power, microphone in, speaker out |
|
ISDN Rate |
230.4Kbps |
|
ISDN Modulation Protocol |
PPP, MLPPP, V.120 |
|
Error Correction/Compression |
Unidentified |
|
Data Bus |
External |
|

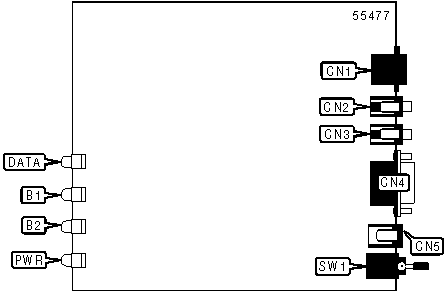

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
ISDN BRI interface (RJ-45) |
CN1 |
9-pin DTE port |
CN4 |
|
Microphone in |
CN2 |
Power |
CN5 |
|
Speaker out |
CN3 |
Power switch |
SW1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
DATA |
Unidentified |
On |
DTR is high |
|
DATA |
Unidentified |
Blinking |
Serial data transfer active |
|
DATA |
Unidentified |
Off |
Serial data transfer not in progress |
|
B1 |
Unidentified |
On |
B-channel 1 data call connected |
|
B1 |
Unidentified |
Off |
No activity on B-channel 1 |
|
B2 |
Unidentified |
On |
B-channel 2 data call connected |
|
B2 |
Unidentified |
Off |
No activity on B-channel 2 |
|
PWR |
Unidentified |
On |
Power is on |
|
PWR |
Unidentified |
Off |
Power is off |
|
SUPPORTED COMMAND SET | |
|
Basic AT Commands | |
|
AT, ‘+++’, A/ | |
|
A, E, Q, V, W, X | |
|
&F, &V | |
|
S Registers | |
|
S0, S2, S3, S4, S5, S7, S25 | |
|
Note: See MHI Help File for full command documentation. |
Proprietary AT Command Set
|
COMMUNICATIONS MODE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &M n [cmds] |
|
Description: |
Selects communications mode |
|
Command |
Mode |
|
&M0 |
Asynchronous mode |
|
&M1 |
Synchronous connect mode and asynchronous off-line command mode. |
|
&M2 |
Synchronous connect mode and asynchronous off-line command mode and set DTR high. |
|
COMMUNICATIONS MODE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Q n [cmds] |
|
Description: |
Selects communications mode options |
|
Command |
Mode |
|
&Q0 |
Asynchronous mode, serial port speed follows connect speed. |
|
&Q1 |
Asynchronous off-line command mode and synchronous connect mode. |
|
&Q2 |
Asynchronous off-line command mode - modem autodials first number in directory, then synchronous connect mode. |
|
&Q3 |
Asynchronous off-line command mode on low DTR, synchronous connect mode on high DTR. |
|
&Q4 |
Auto-synchronous mode |
|
&Q5 |
Error correction mode |
|
DATA CARRIER DETECT (DCD) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &C n [cmds] |
|
Description: |
Selects whether the DCD option is enabled or disabled |
|
Command |
Function |
|
&C0 |
DCD enabled |
|
&C1 |
DCD enabled after carrier signal detected |
|
&C2 |
DCD enabled when on-line, low at loss of carrier, enabled again at idle |
|
DATA SET READY (DSR) | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &S n [cmds] |
|
Description: |
Selects DSR options |
|
Command |
Function |
|
&S0 |
DSR forced high |
|
&S1 |
DSR high only while modem is connected |
|
&S2 |
DSR high only while modem is connected |
|
DATA TERMINAL READY (DTR) | ||||
|
Type: |
Configuration | |||
|
Format: |
AT [cmds] &D n [cmds] | |||
|
Description: |
Selects modem response to DTR | |||
|
Note: The action each variant of &D causes depends on the setting of &Q | ||||
|
&Q Setting |
&D0 |
&D1 |
&D2 |
&D3 |
|
&Q0, &Q5 |
Command 0 |
Command 1 |
Command 2 |
Command 4 |
|
&Q1 |
Command 2 |
Command 1 |
Command 2 |
Command 4 |
|
&Q2 |
Command 2 |
Command 2 |
Command 2 |
Command 2 |
|
Command |
Function | |||
|
Command 0 |
Modem does not respond to DTR | |||
|
Command 1 |
Modem goes to command mode after DTR goes is off | |||
|
Command 2 |
Modem goes to command mode and disconnects (hangs up) after DTR goes off; Auto-Answer is disabled. | |||
|
Command 3 |
Modem is initialized after DTR goes off | |||
|
DIAL | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] D<#> [cmds] |
|
Description: |
Dials telephone number according to any modifiers included in the string |
|
FLOW CONTROL | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &K n [cmds] |
|
Description: |
Enables flow control options |
|
Command |
Function |
|
&K0 |
Flow control disabled |
|
&K1 |
RTS to CTS flow control enabled |
|
&K2 |
XON/XOFF flow control enabled |
|
&K3 |
RTS/CTS flow control enabled |
|
&K4 |
XON/XOFF flow control enabled |
|
HOOK CONTROL | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] H n [cmds] |
|
Description: |
Selects whether the modem is on-hook or off-hook |
|
Command |
Function |
|
H0 |
Modem commanded to go on-hook (hang-up) |
|
ON-LINE | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] O n [cmds] |
|
Description: |
Controls on-line command (data transmission) state options. |
|
Note: The O command must be placed at the end of the command string. | |
|
Command |
Function |
|
O0 |
On-line command mode with no retraining enabled |
|
PROTOCOL SELECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &O n [cmds] |
|
Description: |
Selects active protocol |
|
Command |
Mode |
|
&O7 |
PPP, 1 x B |
|
&O8 |
V.14, 1 x B |
|
&O9 |
V.110, 1 x B |
|
&O10 |
V.120, 1 x B |
|
&O13 |
Multi Link V.120, 2 x B |
|
&O16 |
GCI-speech, 2 x B |
|
&O18 |
GCI-data, 2 x B |
|
&O27 |
Multi Link PPP, 2 x B |
|
REPORT INFORMATION | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] I n [cmds] |
|
Description: |
Displays information requested |
|
Command |
Function |
|
I0 |
Reports hardware identification |
|
I1 |
Reports ROM checksum |
|
I2 |
Tests and reports ROM checksum |
|
I3 |
Reports product name and software revision |
|
I4 |
Reports manufacturer information |
|
I5 |
Reports protocol options |
|
I8 |
Reports Euro-ISDN software version |
|
RESTORE PROFILE ON POWER-UP | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &Y n [cmds] |
|
Description: |
Restores a selected profile into the active profile on power-up (hard reset). |
|
RTS/CTS | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &R n [cmds] |
|
Description: |
Command function currently unidentified |
|
SOFT RESET | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] Z n [cmds] |
|
Description: |
Restores modem profiles previously saved in non-volatile RAM using the &W command. |
|
STORE ACTIVE PROFILE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] &W n [cmds] |
|
Description: |
Writes the values for the active profile into the non-volatile RAM |
EXTENDED AT COMMANDS
|
CONFIGURATION PROFILES | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] /S [cmds] |
|
Description: |
Displays active and stored configuration profiles |
SPECIAL COMMANDS
|
PROTOCOL SELECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] #CH= n [cmds] |
|
Description: |
Selects active protocol |
|
Command |
Mode |
|
#CH=7 |
PPP, 1 x B |
|
#CH=8 |
V.14, 1 x B |
|
#CH=9 |
V.110, 1 x B |
|
î |
V.120, 1 x B |
|
#CH=13 |
Multi Link V.120, 2 x B |
|
#CH=16 |
GCI-speech, 2 x B |
|
#CH=18 |
GCI-data, 2 x B |
|
#CH=27 |
Multi Link PPP, 2 x B |
|
REMOTE NUMBER SELECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] #REMNBRC= n [cmds] |
|
Description: |
Selects remote control number |
|
REMOTE PASSWORD SELECTION | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] #PASSRC= n [cmds] |
|
Description: |
Selects remote control password |
|
RING MODE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] #RM= n [cmds] |
|
Description: |
Selects ring mode |
|
Command |
Mode |
|
#RM0 |
Selects ring mode by subnumber or MSN |
|
#RM1 |
Pass on call to active profile |
|
SOFT RESET | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] #Z n [cmds] |
|
Description: |
Restores modem profiles previously saved in non-volatile RAM using the &W command. |
|
STORED PROFILES | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] #V [cmds] |
|
Description: |
Displays list of stored parameters in short form |
S(STATUS) -REGISTERS
|
ACTIVE PROFILE | |
|
Type: |
Register |
|
Format |
AT [cmds] S110= n [cmds] |
|
Range: |
0-255 |
|
Unit: |
Bit-mapped |
|
Description: |
Selects active profile |
|
AUTOBAUD | |
|
Type: |
Register |
|
Format |
AT [cmds] S124= n [cmds] |
|
Description: |
Enables/disables autobaud function |
|
Command |
Function |
|
S124=0 |
Autobaud disabled |
|
S124=1 |
Autobaud enabled |
|
BIT-MAPPED REGISTER S112 | ||
|
Format: |
AT [cmds] S112= n [cmds] | |
|
Range: |
Unidentified | |
|
Unit: |
Bit-mapped | |
|
Description: |
Controls ring message format | |
|
Bit |
Value |
Function |
|
0 |
0 1 |
Standard AT RING message format (RING) Extended AT RING message format (RING J |
|
1 |
0 1 |
Extended result codes disabled Extended result codes enabled |
|
2 |
0 |
Not used |
|
3 |
0 1 |
Standard AT format Extended AT format |
|
6 - 4 |
0 |
Not used |
|
7 |
0 1 |
Additional service messages disabled Additional service messages enabled |
|
DTR COMMAND | |
|
Type: |
Register |
|
Format |
AT [cmds] S123= n [cmds] |
|
Description: |
Enables &D command |
|
Command |
Function |
|
S123=0 |
&D enabled for DTR functions |
|
S123=1 |
DTR ingnored. &D command disabled |
|
EXTENDED RESULT CODES | ||
|
Type: |
Register | |
|
Format |
AT [cmds] S95= n [cmds] | |
|
Range: |
0-255 | |
|
Unit: |
Bit-mapped | |
|
Description: |
Works in combination with the W n command to enable extended result codes. Features enabled by S95 take precedence over the options selected by W n . | |
|
Bit |
Value |
Function |
|
0 |
0 1 |
CONNECT result code reports DTE speed. CONNECT result code reports line speed instead DTE speed. |
|
1 |
0 1 |
Verbose CONNECT result codes display DTE or line speed only. Adds "/ARQ" to all verbose CONNECT result codes except "NONE." |
|
2 |
0 1 |
CARRIER result codes disabled. CARRIER result codes enabled. |
|
3 |
0 1 |
PROTOCOL result codes disabled. PROTOCOL result codes enabled. |
|
FACTORY DEFAULT PROFILE | |
|
Type: |
Configuration |
|
Format: |
AT [cmds] S121= n [cmds] |
|
Range: |
0-255 |
|
Description: |
Sets values in active profile to values found in the default profile |
|
Command |
Function |
|
S121=0 |
Retrieve factory settings and restart |
|
S121=255 |
Disabled |
|
FLOW CONTROL | |
|
Type: |
Register |
|
Format |
AT [cmds] S39? [cmds] |
|
Description: |
Displays the current flow control |
|
Value |
Meaning |
|
0 |
Flow control disabled |
|
3 |
RTS/CTS flow control enabled |
|
4 |
XON/XOFF flow control enabled |
|
PROTOCOL SERVICE | |
|
Type: |
Register |
|
Format |
AT [cmds] S111= n [cmds] |
|
Description: |
Selects options for protocol service |
|
Command |
Function |
|
1 |
Voice service |
|
2 |
Data modem service |
|
3 |
Raw data service |
|
4 |
Group 3 fax service |
|
5 |
V.14 |
|
7 |
PAD service |
|
8 |
V.120 service |
|
10 |
Synchronous relay service |
|
RING MESSAGE TIMER | |
|
Type: |
Register |
|
Format |
AT [cmds] S117= n [cmds] |
|
Range: |
0-255 |
|
Unit: |
1 second |
|
Description: |
Maximum duration allowed between two consecutive RING messages |
|
Note: S117=0 allows for a single RING message only | |
|
SERIAL ASYNCHRONOUS RATE & CLOCK SELECTION | |
|
Type: |
Register |
|
Format |
AT [cmds] S114= n [cmds] |
|
Description: |
Selects sserial asynchronous speed & clock selection |
|
Command |
Function |
|
S114=0 |
External clock source |
|
S114=1 |
1200bps |
|
S114=2 |
2400bps |
|
S114=3 |
300bps |
|
S114=4 |
4800bps |
|
S114=7 |
7200bps |
|
S114=9 |
9600bps |
|
S114=12 |
1200bps |
|
S114=14 |
14.400bps |
|
S114=19 |
19.2Kbps |
|
S114=24 |
2400bps |
|
S114=28 |
28.8Kbps |
|
S114=38 |
38.4Kbps |
|
S114=48 |
4800bps |
|
S114=20 |
57.6Kbps |
|
S114=72 |
7200bps |
|
S114=75 |
75bps |
|
S114=96 |
9600bps |
|
S114=115 |
115.2Kbps |
|
S114=255 |
Internal clock source |
|
SOFT RESET | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] S122= n [cmds] |
|
Description: |
Restores modem profiles previously saved in non-volatile RAM using the &W command. |
|
Command |
Function |
|
S122=0 |
Restore setting |
|
S122=255 |
Disabled |
