ZYXEL COMMUNICATIONS CORPORATION
U-1496B/U-1496B+
|
Modem Type |
Data (synchronous/asynchronous)/Fax/Voice |
|
Maximum Data Rate |
19.2Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.26bis, V.27bis, V.29, V.32, V.32bis, V.33 ZyXEL 16.8Kbps, 19.2Kbps, ZyCELL 4800bps-19.2Kbps cellular |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP2-5, V.42, V.42bis |
|

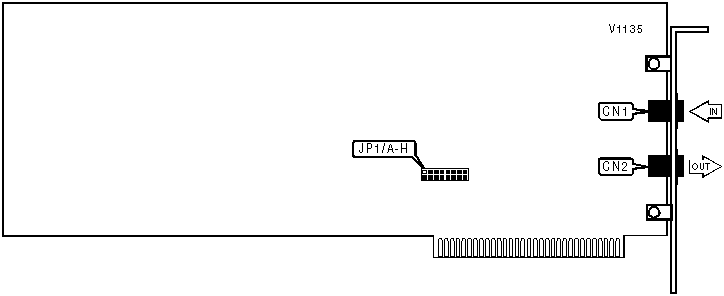

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
BASE I/O ADDRESS SELECTION | ||||
|
Address |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
|
COM1: |
Closed |
Open |
Closed |
Open |
|
COM2: |
Open |
Closed |
Closed |
Open |
|
COM3: |
Closed |
Open |
Open |
Closed |
|
COM4: |
Open |
Closed |
Open |
Closed |
|
INTERRUPT SELECTION | ||||
|
IRQ |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
3 |
Closed |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Closed |
Open |
|
6 |
Open |
Open |
Open |
Closed |
Proprietary Command Set
See document V1036 for a full command summary.
