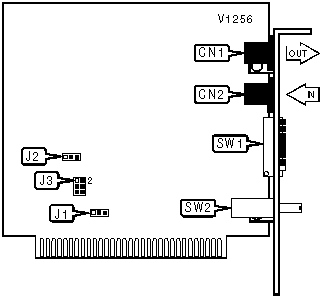

CONNECTIONS
Purpose	Location	Purpose	Location
Line out	CN1	Volume	SW2
Line in	CN2

DTR SIGNAL
Setting	SW1/1
» DTR forced high	On
DTR normal	Off

RESULT CODES
Setting	SW1/2
» Verbose result codes enabled	Off
Numeric result codes enabled	On

RESULT CODES DISPLAY
Setting	SW1/3
» Display enabled	On
Display disabled	Off

ECHO COMMANDS DISPLAY
Setting	SW1/4
» Local echo enabled	Off
Local echo disabled	On

AUTO ANSWER
Setting	SW1/5
» Modem does not answer on first ring	On
Modem answers on first ring	Off

CARRIER DETECT
Setting	SW1/6
» CD normal	Off
CD forced high	On

MULTLINE INSTALLATION
Setting	SW1/7
» Single phone connected	Off
Multiple phones connected	On

AT COMMAND SET
Setting	SW1/8
» AT command set recognized	On
AT command set disabled	Off

COM PORT CONFIGURATION
Port	J1	J2
COM1: (3F8h)	Pins 1 & 2 closed	Pins 1 & 2 closed
COM2: (3E8h)	Pins 2 & 3 closed	Pins 1 & 2 closed
COM3: (2F8h)	Pins 1 & 2 closed	Pins 2 & 3 closed
COM4: (2E8h)	Pins 2 & 3 closed	Pins 2 & 3 closed

INTERRUPT SELECTION
IRQ	J3
3	Pins 3 & 5 closed
4	Pins 1 & 3 closed
5	Pins 2 & 4 closed
7	Pins 4 & 6 closed
Disabled	Open

ANALOG LOOPBACK SELF TEST
Type:	Register
Format:	AT [cmds] S16=n [cmds]
Example:	ATS16=139<CR>
Description:	Selects the tone dialing test.
Command	Function
0	Data mode.
1	Analog loopback.
2	Dial testing.
4	Test pattern.
5	Analog loopback and test pattern.
