Card Type	Modem (asynchronous)
Chip Set	Unidentified
Maximum Data Rate	2400bps
Data Bus	8-bit ISA
Data Modulation Protocol	Bell 103A/212A ITU-T V.22, V.22bis
Error Correction/Compression	MNP5, V.42, V.42bis

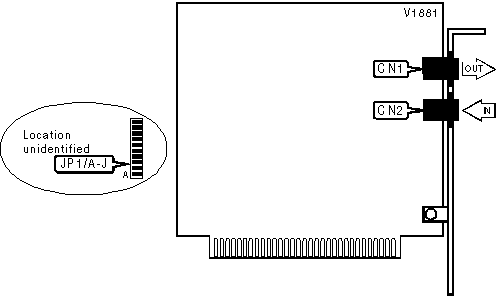

CONNECTIONS
Function	Label		Function		Label
Line out		CN1		Line in		CN2

SERIAL PORT ADDRESS
Setting	JP1/A	JP1/B	JP1/C	JP1/D
COM1 (3F8h)	Closed	Open	Closed	Open
COM2 (2F8h)	Closed	Open	Open	Closed
COM3 (3E8h)	Open	Closed	Closed	Open
COM4 (2E8h)	Open	Closed	Open	Closed

INTERRUPT
Setting	JP1/E	JP1/F	JP1/G	JP1/H
2	Open	Open	Open	Closed
3	Open	Closed	Open	Open
4	Closed	Open	Open	Open
5	Open	Open	Closed	Open

WAIT STATE
Setting	JP1/I	JP1/J
0	Closed	Open
1	Open	Closed

BIT MAPPED REGISTERS
Register	Default
S14	170
S21	0
S22	118
S23	7
S27	64
S28	0

DTMF ATTENUATION
Type:	Configuration
Format:	AT [cmds] %Dn [cmds]
Default:	0
Range:	1-7
Unit:	2 dBm
Description:	Controls DTMF attenuation

SECONDARY DEFAULTS
Type:	Immediate
Format:	AT [cmds] %J [cmds]
Description:	Sets all S registers and AT commands to AT&F default except; S6=3s, range 3-255; S11=95ms, range 60-255; %L3, 6dBm; %D1, 2dBm.

TEST MODES
Format		AT [cmds] S16=n [cmds]
Default:		0
Range:		0-125
Unit:		Bit-mapped
Description:		Controls loopback tests, analog, digital, remote digital, and self tests.
Bit	Value	Function
0	í 0 1	Local analog loopback not in progress Local analog loopback in progress
1	í 0	Not used
2	í 0 1	Local digital loopback not in progress Local digital loopback in progress
3	í 0 1	Modem not in remote digital loopback Remote digital loopback in progress
4	í 0 1	Remote digital loopback not in progress Remote digital loopback in progress
5	í 0 1	Remote digital loopback w/ self-test not in progress Remote digital loopback w/ self-test in progress
6	í 0 1	Local analog loopback w/ self-test not in progress Local analog loopback w/ self-test in progress

TRANSMIT ATTENUATION
Type:	Configuration
Format:	AT [cmds] %Ln [cmds]
Default:	0
Range:	1-7
Unit:	2 dBm
Description:	Controls transmit attenuation
