Card Type	Modem (synchronous/asynchronous)
Chipset	Sierra
I/O Options	Voice
Maximum Data Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	External
Fax Class	Class I & II
Data Modulation	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34
Fax Modulation	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

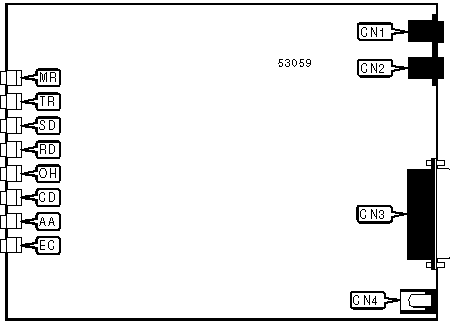

CONNECTIONS
Function	Label	Function	Label
Line in	CN1	RS-232/422	CN3
Line out	CN2	DC power in	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
MR	Red	On	Power is on
MR	Red	Off	Power is off
TR	Red	On	DTR signal is high
TR	Red	Off	DTR signal is low
SD	Red	On	Modem is transmitting data
SD	Red	Off	Modem is not transmitting data
RD	Red	On	Modem is receiving data
RD	Red	Off	Modem is not receiving data
OH	Red	On	Modem is off-hook
OH	Red	Off	Modem is on-hook
CD	Red	On	Carrier signal detected
CD	Red	Off	Carrier signal not detected

DIAGNOSTIC LED(S) (CON’T)
LED	Color	Status	Condition
AA	Red	On	Auto-answer enabled
AA	Red	Off	Auto-answer disabled
EC	Red	On	Error correction enabled
EC	Red	Off	Error correction disabled

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, B, D, E, H, L, M, O, P, Q, T, V, X, Y, Z

&C, &D, &F, &M, &R, &S, &T, &V, &W, &X, &Y, &Z

Extended AT Commands

\C, \G, \N, \Q, \V, \X

%A, %C, %D, %Q

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S12, S18, S25, S26, S38

Note: See MHI documentation for complete information.
