Card Type	Modem (asynchronous), Ethernet
Chipset	Unidentified
Maximum Onboard Memory	64KB SRAM/256KB Flash RAM
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wire Type	Unshielded twisted pair
Maximum Data Rate	33.6Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 212A ITU-T V.22, V.22bis, V.23, V.32, V.32bis, V.34 AT&T V.32terbo
Fax Modulation	ITU-T V.17, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I & II
Data Bus	PCMCIA Type II

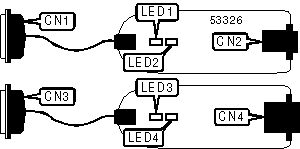

CONNECTIONS
Function	Label	Function	Label
MAM connector to PCMCIA card	CN1	MAM connector to PCMCIA card	CN3
Telephone line out	CN2	Coaxial cable connector	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Card is transmitting or receiving data over the modem
LED1	Unidentified	Off	Card is not transmitting or receiving data over the modem
LED2	Unidentified	On	Carrier signal detected
LED2	Unidentified	Off	Carrier signal not detected
LED3	Unidentified	On	Card is transmitting or receiving data over Ethernet
LED3	Unidentified	Off	Card is not transmitting or receiving data over Ethernet
LED4	Unidentified	On	Network connection is good
LED4	Unidentified	Off	Network connection is broken

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, A/

A, D, E, H, M, N, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &P, &S, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \K, \N, \Q, \T, \U, \V, \X, \Y, \Z

%A, %C, %E, %G

Special AT Commands

-C, "H, -J, "O

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S25, S30, S46, S82, S95, S108

Note: See MHI help file for complete information.
