VISTACOM, INC.
POWERCOM/VCI-10
|
Card Type |
Telephony |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Video/audio connector, VGA port, VGA feature connector, MVIP bus |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full-length, full-height |
|

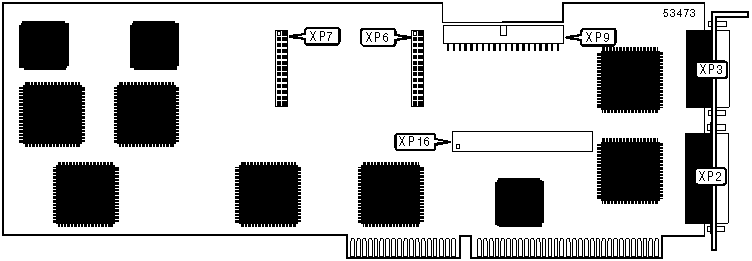

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
26-pin video/audio connector |
XP2 |
Header connector to the Mark II board |
XP7 |
|
15-pin analog video port |
XP3 |
MVIP bus |
XP9 |
|
Header connector to the Mark II board |
XP6 |
Header connector to the Video Overlay board |
XP16 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The audiovisual communications PowerCom/VCI-10 consists of one full length board with two optional daughterboards: Mark II (video compression engine) and VCOMIII (video overlay). The card can also be chained to additional network cards, such as the Powercom/NI-10 (V.22/V.35) board. |
Mark II Board
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header connector to the mainboard |
XP1 |
Header connector to the mainboard |
XP2 |
Video Overlay Board
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header connector to the mainboard |
XP1 |
Feature connector |
XP2 |
