ZOLTRIX, INC.
FM-288I
|
Card Type |
Modem, Fax |
|
Chip Set |
Rockwell |
|
I/O Options |
Line in (RJ-11), line out (RJ-11) |
|
Maximum Modem Rate |
28.8Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Modulation Protocol |
Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34 Rockwell V.FC |
|
Fax Modulation Protocol |
ITU-T V.17, V.21 CH.2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|
Fax Class |
Class I & II |
|
Data Bus |
8-bit ISA |
|
Card Size |
Half-length, full-height card |
|

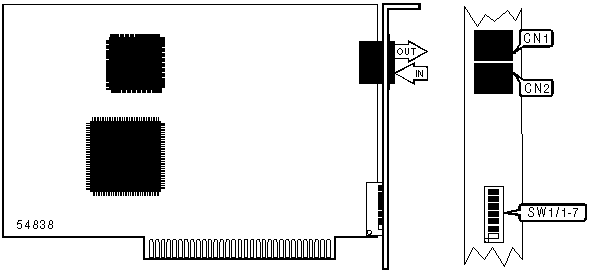

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
Line in |
CN2 | |||
|
SERIAL PORT ADDRESS | ||
|
Setting |
SW1/5 |
SW1/6 |
|
COM1 (3F8h) |
On |
On |
|
í COM2 (2F8h) |
Off |
On |
|
COM3 (3E8h) |
On |
Off |
|
COM4 (2E8h) |
Off |
Off |
|
INTERRUPT SETTINGS | |||||
|
IRQ |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/7 |
|
IRQ2 |
Off |
Off |
Off |
Off |
On |
|
í IRQ3 |
Off |
Off |
Off |
On |
Off |
|
IRQ4 |
Off |
Off |
On |
Off |
Off |
|
IRQ5 |
Off |
On |
Off |
Off |
Off |
|
IRQ7 |
On |
Off |
Off |
Off |
Off |
|
SUPPORTED COMMAND SET |
|
Basic AT Commands |
|
AT, ‘+++’, A/ |
|
A, B, C, D, E, F, H, I, L, M, N, O, P, Q, T, V, W, X, Y, Z |
|
&C, &D, &F, &G, &J, &K, &L, &M, &P, &Q, &R, &S, &T, &V, &W, &X, &Y, &Z |
|
Extended AT Commands |
|
\A, \B, \G, \K, \L, \N |
|
%C, %E, %L, %Q |
|
S Registers |
|
S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S25, S26, |
|
S27, S29, S30, S32, S33, S36, S37, S38, S40, S41, S46, S48, S82, S86, S95 |
|
Special Commands |
|
+MS |
|
Note: See MHI Help File for full command documentation. |
Proprietary AT Command Set
|
DIAL | |
|
Type: |
Immediate |
|
Format: |
AT [cmds] D<#> [cmds] |
|
Description: |
Dials telephone number according to any modifiers included in the string |
|
Note: |
Any combination of modifiers can be used to produce the desired dial functions in sequence. |
|
Command |
Function |
|
DP |
Pulse dialing enabled |
|
í DT |
Tone dialing enabled |
|
DW |
Dialing resumed following dial tone detection |
|
D, |
Dialing paused for amount of time specified in S8 register |
|
D/ |
Set dialing delay for 0.125 seconds |
|
D! |
Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook. |
|
D@ |
Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string. |
|
D; |
Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command. |
|
D^ |
Dialing paused for 5 seconds |
|
DR |
Reverse mode enabled. Modem uses Answer mode frequencies to modem set to Originate Only mode. |
