Card Type	Modem (asynchronous)
Chip Set	Unidentified
I/O Options	AC power, RS-232 serial port, RS-422/485
Maximum Modem Rate	38.4Kbps
Data Modulation Protocol	C/CCITT V.24/V.28, V.11
Error Correction/Compression	Unidentified
Data Bus	External

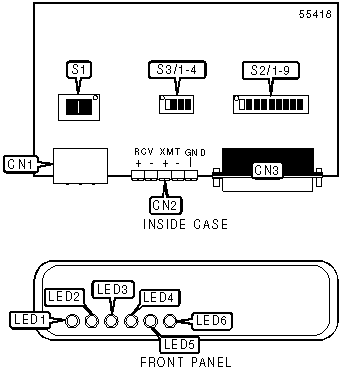

CONNECTIONS
Function	Label	Function	Label
Power connector	CN1	RS-232-C port	CN3
Terminal block	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	115V AC enabled	S1	On
	230V AC enabled	S1	Off
	2-wire transmission	S2/6	On
»	4-wire transmission	S2/6	Off
»	Factory configured - do not alter	S2/7	Off
»	Factory configured - do not alter	S2/8	Off
»	Factory configured - do not alter	S2/9	Off

DATA BIT SELECTION
Setting		S2/4	S2/5
	9	On	On
»	10	On	Off
	11	Off	On
	12	Off	Off

TERMINATION WITH FAIL-SAFE SELECTION
Setting		S3/1	S3/2	S3/3	S3/4
	Termination (4-wire)	On	On	Off	Off
	Termination (2-wire)	Off	Off	On	On
»	No termination	Off	Off	Off	Off

DATA RATE SELECTION
Setting		S2/1	S2/2	S2/3
	300bps	Off	Off	Off
	600bps	On	Off	Off
	1200bps	Off	On	Off
	2400bps	On	On	Off
	4800bps	Off	Off	On
»	9600bps	On	Off	On
	19200bps	Off	On	On
	38400bps	On	On	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Power is on
LED1	Unidentified	Off	Power is off
LED2	Unidentified	On	Data is being received
LED2	Unidentified	Off	Data is not being received
LED3	Unidentified	On	Data carrier present
LED3	Unidentified	Off	Data carrier not present - connection not established
LED4	Unidentified	On	CTS signal is high - device ready to send data
LED4	Unidentified	Off	CTS signal is low
LED5	Unidentified	On	RTS signal is high
LED5	Unidentified	Off	RTS signal is low
LED6	Unidentified	On	Data is being transmitted
LED6	Unidentified	Off	Data is not being transmitted
