ARTIST GRAPHICS
WINSPRINT 1000 VL BUS
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Artist GPX |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
VRAM/DRAM |
|
Maximum Onboard Memory |
2048KB VRAM, 8MB DRAM |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|

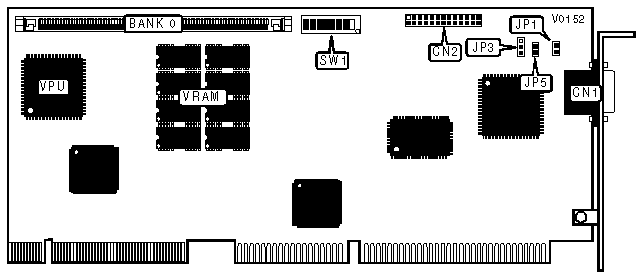

VIDEO CONFIGURATION | |||
|
Setting |
JP1 |
JP5 | |
| » |
Enabled |
Open |
Closed |
|
Disabled |
Closed |
Open | |
|
VIDEO SYNC SELECTION | ||
|
Sync |
JP3 | |
| » |
Separate Signals |
Pins 1 & 2 closed |
|
Composite Signals |
Pins 2 & 3 closed | |
|
BASE I/O ADDRESS SELECTION | |||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
3E0h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
2C0h |
On |
On |
Off |
Off |
On |
Off |
Off |
Off | |
|
2D0h |
Off |
On |
Off |
Off |
On |
Off |
Off |
Off | |
|
2E0h |
On |
Off |
Off |
Off |
On |
Off |
Off |
Off | |
|
DRAM/VRAM CONFIGURATION | |
|
Size |
Bank 0 |
|
1MB |
256K x 36 |
|
2MB |
512KB x 36 |
|
4MB |
1M x 36 |
|
8MB |
2M x 36 |
