AMERICAN MEGATRENDS, INC.
FAST VIEW EISA
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 |
|
Highest Resolution Supported |
1280 X 1024 |
|
Data Bus Type |
16-bit EISA |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
1MB |
|

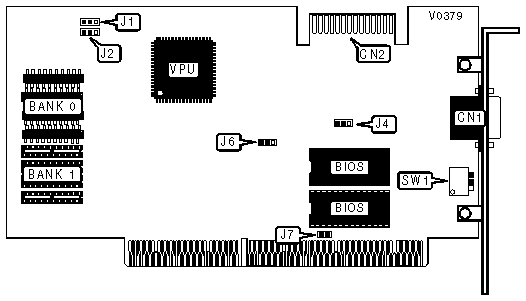

REFRESH RATE CONFIGURATION | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VESA Feature Connector |
CN2 |
|
640 X 480 REFRESH RATES | |||
|
Refresh |
SW1/switch 1 |
SW1/switch 2 |
SW1/switch 3 |
|
60Hz |
Off |
Off |
Off |
|
70Hz |
On |
Off |
Off |
|
800 X 600 REFRESH RATES | |||
|
Refresh |
SW1/switch 1 |
SW1/switch 2 |
SW1/switch 3 |
|
60Hz |
Off |
On |
Off |
|
70Hz |
On |
On |
Off |
|
56Hz |
Off |
Off |
On |
|
1024 X 768 REFRESH RATES | |||
|
Refresh |
SW1/switch 1 |
SW1/switch 2 |
SW1/switch 3 |
|
43Hz |
On |
Off |
On |
|
60Hz |
Off |
On |
On |
|
70Hz |
On |
On |
On |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
J2 |
Pins 1 & 2 closed |
|
J4 |
Pins 1 & 2 closed |
|
J6 |
Pins 1 & 2 closed |
|
J7 |
Open |
|
VIDEO MEMORY CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
J1 |
|
512KB |
(4) 44256 ZIP |
None |
Pins 2 & 3 closed |
|
1024KB |
(4) 44256 ZIP |
(4) 44256 ZIP |
Pins 1 & 2 closed |
