Category	Video/Sound
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	1MB (location unknown)

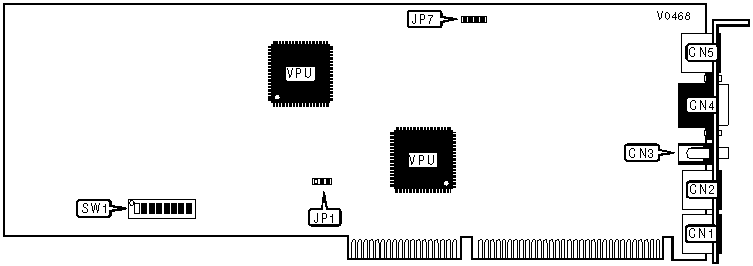

CONNECTIONS
Purpose	Location	Purpose	Location
DIN connector - audio/video 2/3 in	CN1	15-pin analog video port	CN4
DIN connector - audio/video 1 in	CN2	DIN connector - VGA loopback	CN5
Audio out jack	CN3	4-pin auxiliary audio connector	JP7

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP1	Pins 2 & 3 closed
SW1/1	On
SW1/2	On
SW1/3	On
SW1/4	On
SW1/5	On
SW1/6	On
SW1/7	On
SW1/8	On
Note: the factory strongly recommends not altering default settings for JP1 and SW1
