Category	Video
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	Unidentified

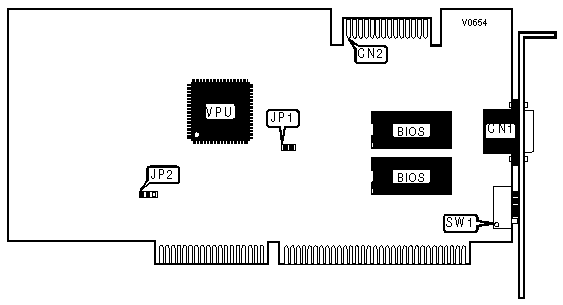

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

800 X 600 MODE SETTINGS
Monitor Timings		SW1/1	SW1/2
»	Vertical 56Hz NL, Horizontal 35.12	Off	Off
	Vertical 72Hz NL, Horizontal 37.83	On	Off
	Vertical 60Hz NL, Horizontal 47.67	Off	On
	Vertical 56Hz NL, Horizontal 35.12	On	On

1024 X 768 MODE SETTINGS
Monitor Timings		SW1/3	SW1/4
»	Vertical 87Hz Interlaced, Horizontal 35.60	Off	Off
	Vertical 70Hz NL, Horizontal 56.56	On	Off
	Vertical 60Hz NL, Horizontal 48.37	Off	On
	Vertical 72Hz NL, Horizontal 59.46	On	On

VGA CONFIGURABLE SETTING
Monitor Timings		SW1/5
»	Vertical 60/70Hz, Horizontal 31.5Khz	Off
	Vertical 75/88Hz, Horizontal 40Khz	On

ZERO WAIT STATE SELECT
Purpose		JP1
»	Enabled	Closed
	Disabled	Open

ADDRESS LATCH SELECT
Purpose		JP2
»	Tied to VCC	Pins 1 & 2 closed
	Tied to BUS	Pins 2 & 3 closed
