BEHAVIOR TECH COMPUTER CORPORATION
VIDEOFEX VGA BTC-1515C
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
800 x 600 |
|
Maximum Video Memory |
Unidentified |
|
Data Bus |
8/16-bit ISA |
|
Video Types Supported |
VGA |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin digital video port |
CN1 |
15-pin analog video port |
CN2 |
|

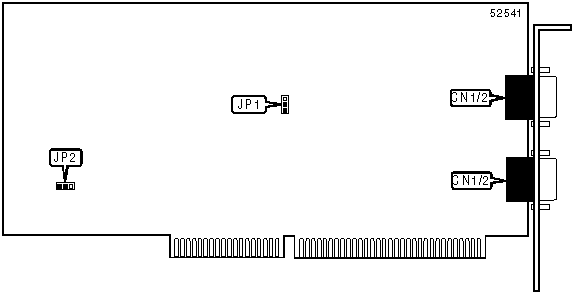

Note:The exact location of the CN1 and CN2 are unidentified. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
IRQ2 disabled |
JP1 |
Pins 2 & 3 closed |
|
IRQ2 enabled |
JP1 |
Pins 1 & 2 closed | |
| » |
8-bit bus slot selected |
JP2 |
Pins 2 & 3 closed |
|
16-bit bus slot selected |
JP2 |
Pins 1 & 2 closed | |
