Card Type	Video card
Video Chip Set	Advance Micro Technology
Highest Resolution Supported	1024 x 768
Maximum Video Memory	1MB RAM (location unidentified)
Data Bus	16-bit ISA
Video Types Supported	VGA

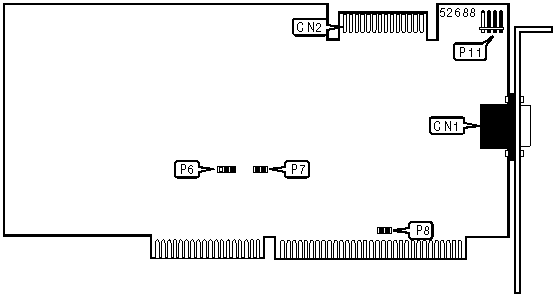

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	VGA feature connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	P6	Unidentified
»	Factory configured - do not alter	P7	Unidentified
»	Interrupt 9 selected	P8	Closed
	No Interrupt selection	P8	Open

SCAN RATE SELECTION
Rate		P11
»	Standard screen refresh	Pins 3 & 4 closed
	Ergonomic screen refresh	Pins 2 & 3 closed
	Reserved	Pins 1 & 2 closed
