ATI TECHNOLOGIES, INC.
GRAPHICS SOLUTION SR
|
Card Type |
Video card |
|
Video Chip Set |
VLSI |
|
Highest Resolution Supported |
720 x 348 |
|
Maximum Video Memory |
Unidentified |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome, CGA, EGA |
|

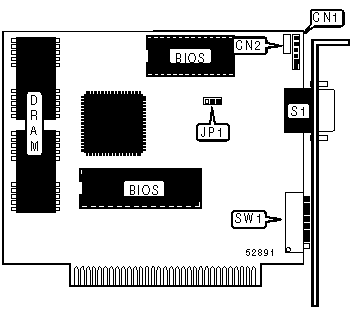

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Light pen |
CN1 |
9-pin digital video port |
S1 |
|
Composite video output |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1 |
Pins 2 & 3 closed |
| » |
Factory configured - do not alter |
SW1/6 |
On |
| » |
Factory configured - do not alter |
SW1/7 |
N/A |
| » |
Factory configured - do not alter |
SW1/8 |
N/A |
|
DISPLAY CONFIGURATION | ||
|
Type |
SW1/1 |
SW1/2 |
|
Monochrome |
On |
Off |
|
CGA |
Off |
On |
|
CGA emulation |
Off |
Off |
|
MONITOR SELECTION | |||
|
Type |
SW1/3 |
SW1/4 |
SW1/5 |
|
Monochrome |
On |
Off |
Off |
|
RGB color |
On |
Off |
Off |
|
Analog monochrome |
Off |
On |
On |
|
Composite color |
Off |
On |
On |
|
EGA |
Off |
Off |
Off |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Note: DRAM bank identified for location only. Chip size is unidentified. |
