Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	640 x 200
Maximum Video Memory	64KB
Data Bus	8-bit ISA
Video Types Supported	Monochrome, CGA

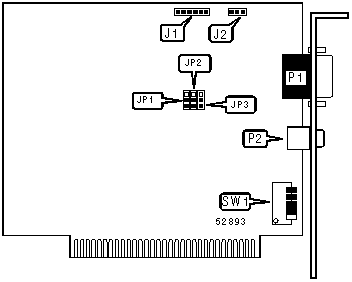

CONNECTIONS
Function	Label	Function	Label
Light pen	J1	9-pin digital video port	P1
Composite video output	J2	Composite video output	P2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Open
»	Factory configured - do not alter	JP2	Open
»	Factory configured - do not alter	JP3	Open
»	Factory configured - do not alter	SW1/4	N/A

DISPLAY CONFIGURATION
Type	SW1/1
Monochrome	On
CGA	Off

MONITOR SELECTION
Type	SW1/2	SW1/3
Monochrome	Off	Off
CGA	On	On
Analog monochrome	On	Off
