Card Type	Video card
Video Chip Set	MGA
Maximum Video Memory	8MB WRAM
Video Types Supported	VGA
Highest Resolution Supported	1600 x 1280
Data Bus	32-bit PCI

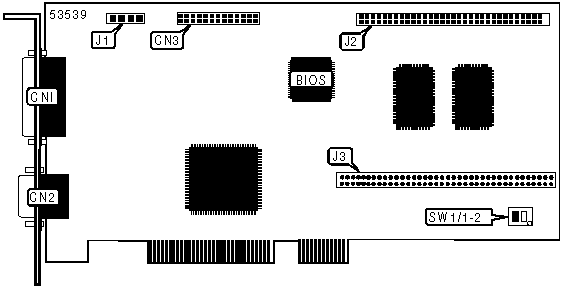

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Access bus	J1
15-pin analog video port	CN2	Connector for RAM expansion module	J2
Feature connector	CN3	Connector for RAM expansion module	J3

USER CONFIGURABLE SETTINGS
Function	Label	Position
BIOS protected	SW1/1	Off
BIOS unprotected	SW1/1	On
VGA for single screen configuration, enabled	SW1/2	Off
VGA for dual screen configuration, enabled	SW1/2	On

MISCELLANEOUS TECHNICAL NOTES

Memory modules come in 2MB 4MB and 6MB boards

CONNECTIONS
Function	Label	Function	Label
Connector to main board	J1	Connector main board	J2
