Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	52MB
Video Types Supported	Monochrome, CGA, EGA, VGA, XVGA
Highest Resolution Supported	1920 x 1080
Data Bus	32-bit PCI

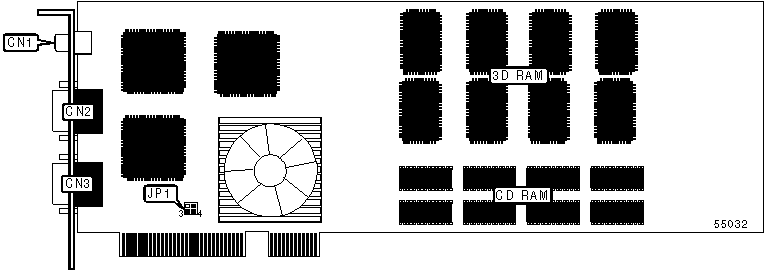

CONNECTIONS
Function	Label	Function	Label
RCA stereo output connector	CN1	15-pin secondary video port	CN3
15-pin primary video port	CN2

VGA SELECTION
Setting	JP1/pins 1 & 2	JP1/pins 3 & 4
VGA enabled	Open	Closed
VGA disabled	Closed	Open

MEMORY CONFIGURATION
Total memory	Texture memory (CDRAM)	Frame/local buffer (3DRAM)
52MB	32MB	20MB
Note: Memory chips are located on both sides of the board.
