APPIAN TECHNOLOGY
JERONIMO PRO (4MB)
|
Card Type |
Graphics Accelerator |
|
Video Chip Set |
3DLabs |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Maximum Video Memory |
4MB SGRAM |
|
Data Bus |
64-bit PCI |
|

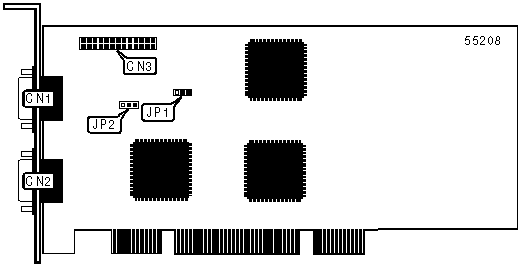

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port 1 |
CN1 |
VESA feature connector |
CN3 |
|
15-pin analog video port 2 |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Primary VGA enabled |
JP1 |
Pins 1 & 2 closed |
|
Primary VGA disabled |
JP1 |
Pins 2 & 3 closed | |
|
Secondary VGA enabled |
JP2 |
Pins 1 & 2 closed | |
|
Secondary VGA disabled |
JP2 |
Pins 2 & 3 closed | |
