Card Type	Video capture board
Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	VGA
Highest Resolution Supported	Unidentified
Data Bus	32-bit PCI

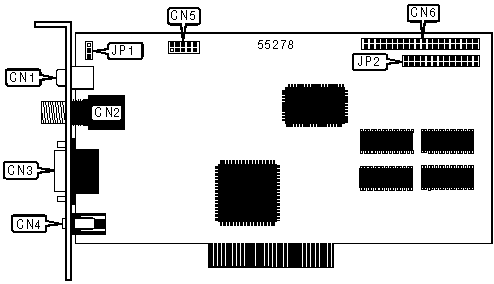

CONNECTIONS
Function	Label	Function	Label
Speaker out	CN1	TV/VCR out	CN4
Antenna	CN2	Secondary connector array	CN5
VGA connector	CN3	Infra-red detector	CN6

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified

DRAM CONFIGURATION
Note:	Memory configuration is unidentified
