Category	Video
Video Types Supported	XVGA
Video Processor	ET4000
Highest Resolution Supported	1024 x 768
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	4096KB

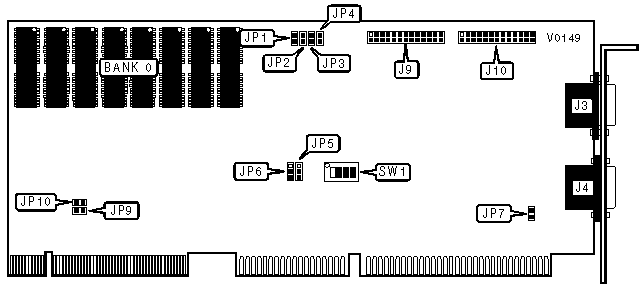

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	J3	VGA feature connector	J9
15-pin analog video port	J4	VGA feature connector	J10

WAIT STATE SELECTION
Setting		JP1	JP2
»	4	Closed	Closed
	3	Open	Closed
	2	Closed	Open
	1	Open	Open

BASE I/O ADDRESS SELECTION
Address		SW1/1	SW1/2
»	348h - 34Fh	Off	On
	328h - 32Fh	Off	Off
	338h - 33Fh	On	Off
	358h - 35Fh	On	On

ADAPTER ID CONFIGURATION
ID		SW1/3	SW1/4
»	0	On	On
	1	Off	On
	2	On	Off
	3	Off	Off

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP3	Closed
JP4	Closed
JP5	Closed
JP6	Closed
JP9	Closed
JP10	Closed
