Category	Video
Video Types Supported	CGA
Video Processor	Unidentified
Highest Resolution Supported	640 x 200
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	Unidentified

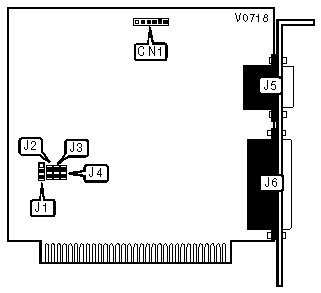

CONNECTIONS
Purpose	Location	Purpose	Location
9-pin digital video port	J5	6-pin light pen connector	CN1
Parallel port	J6

DISPLAY MODE
Setting	J1
» Color	Pins 1 & 2 closed
Monochrome	Pins 2 & 3 closed

PRINTER RESOLUTION
Setting	J2
» Single dot	Closed
Double dot	Open

PARALLEL PORT ADDRESS
LPT/Address	J3	J4
» LPT1/3BCh	Closed	Open
LPT2/378h	Closed	Closed
LPT3/278h	Open	Closed
